Pneumatic Valves

We provide advanced, high-speed, and automated pneumatic valve systems for industries demanding rapid air-powered flow management.

Pneumatic Valves

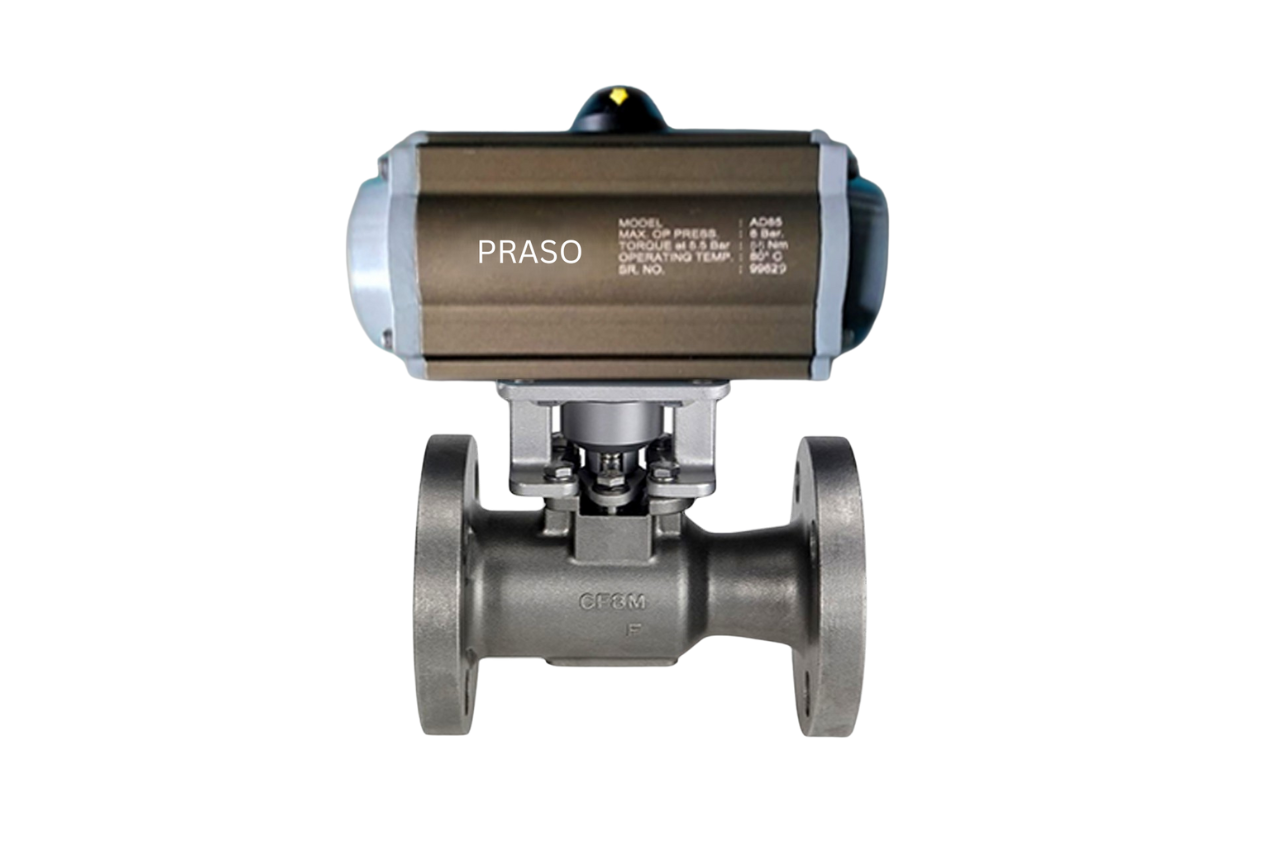

Pneumatic Actuator Operated Single Piece Ball Valve

Actuator Body: Aluminum Hard Anodized
Shaft: EN 8
Caps & Piston: Aluminum Pressure Die Cast
Seat: Nitrile (-20 To 80°C)
Operating Pressure: 5 Kg/Cm2 To 10 Kg/Cm2
Ball Valve Details: –Body: ASTM A 216 Gr. WCB / CF8 (SS-304) / CF8M (SS 316)
Ball: SS 304 / SS 316
Seat: PTFE
End Connection: Screwed End / Flanged End To ASME B 16.5 150#
Class (#): 150# / 300#
Pressure: 10 Kg/Cm2
Temperature: Up-To 180 °C

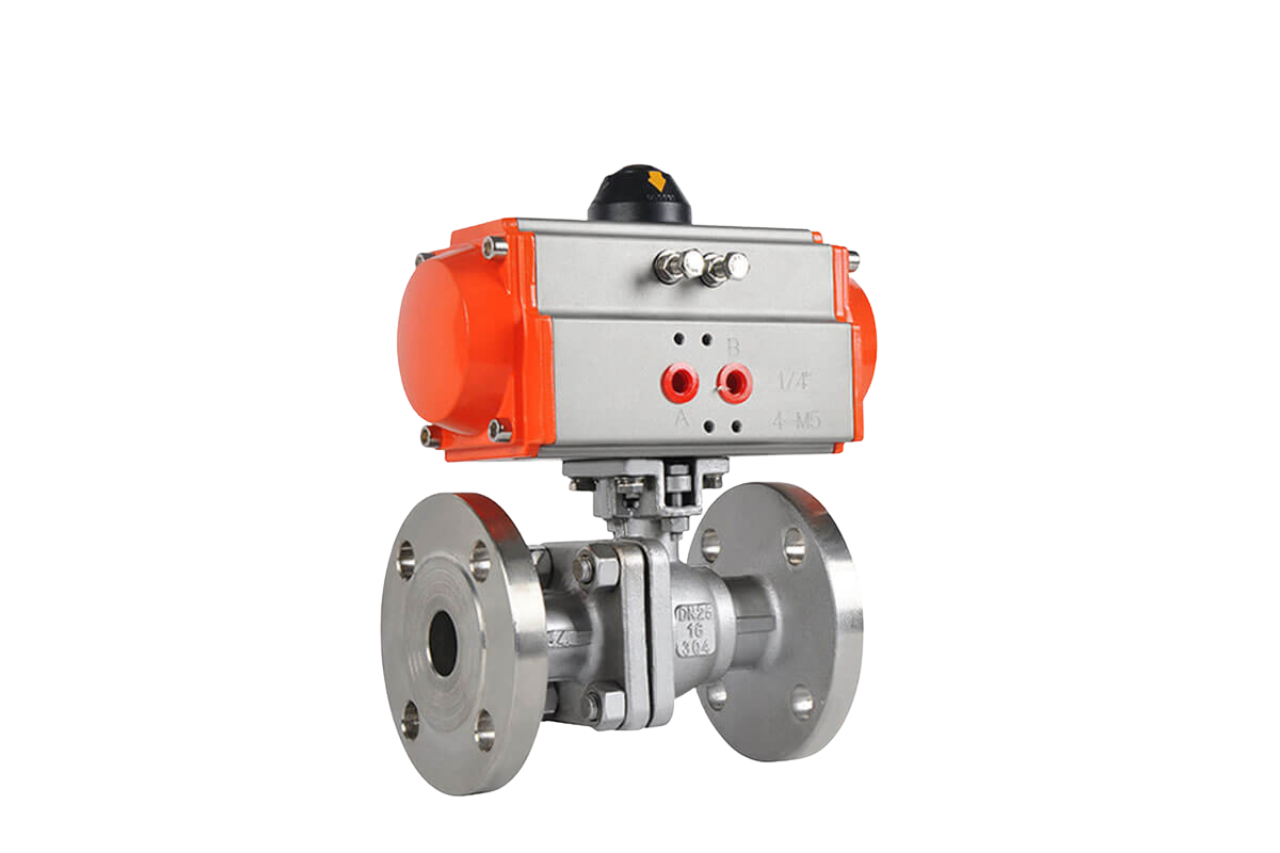

Pneumatic Actuator Operated Two Piece Design Ball Valve Flanged End

Actuation: Single Acting / Double Acting (90° – Turn )
Actuator Body: Aluminum Hard Anodized
Caps & Rack: Aluminum Pressure Die Cast
Actuator Design: ISO 5211 (Actuator Can Be Quickly And Easily mounting)
Ball Valve Details: –Body: ASTM A 216 Gr. WCB / CF8 (SS 304) / CF8M (SS 316)
Ball: SS 304 / SS 316
Seat: PTFE
End Connection: Flanged End To ASME B 16.5 150#
Class (#): 150# / 300#
Pressure: Upto 10 Kg/Cm2
Temperature: Upto 180 °C

Pneumatic Actuator Operated Three Piece Ball Valve

Actuation: Single Acting / Double Acting (90° – Turn )
Actuator Body: Extruded Aluminium Hard Anodised
Caps And Rack: Aluminium Pressure Die Cast
Actuator Design: ISO 5211 (Actuator Can Be Quickly And Easily mounting)
Ball Valve Details: –Body: WCB / ASTM A 351 Gr CF8 (SS 304) / CF8M (SS 316)
Ball: SS 304 / SS 316
Seals: PTFE
End Connection: Flanged End ANSI B 16.5 ASA 150# / 300# / 600#
Class (#): 150# / 300# / 600#
Pressure: Upto 10 Kg/Cm2
Temperature: Upto 180 °C

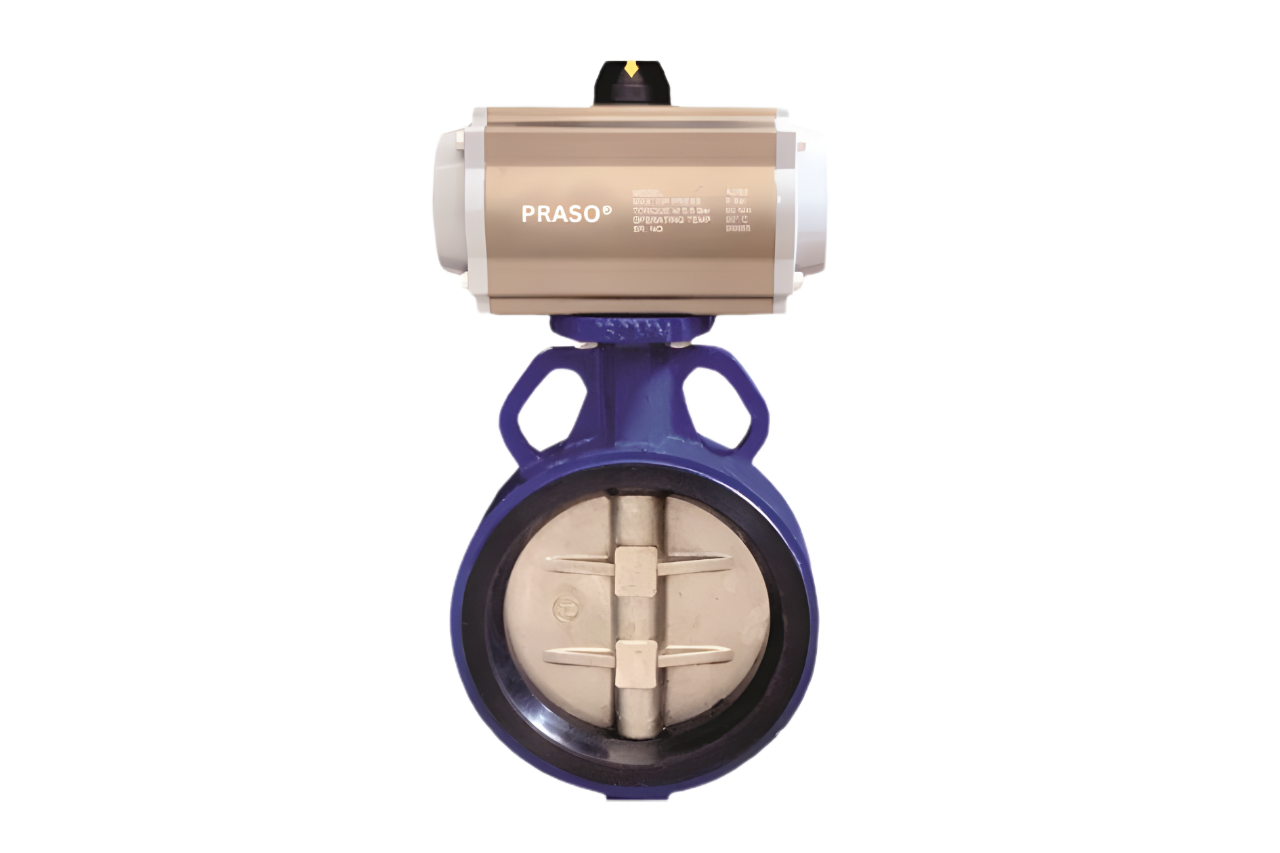

Pneumatic Actuator Operated Centric Disc Butterfly Valve

Actuation: Single Acting / Double Acting (90° – Turn )
Actuator Body: Extruded Aluminium Hard Anodised
Caps And Rack: Aluminium Pressure Die Cast
Actuator Design: ISO 5211 (Actuator Can Be Quickly And Easily mounting)
Butterfly Valve Detail: –Body: IS 210 FG 200/220 Cast Iron / CF8 / CF8M / WCB (Cast Steel)
Disc: S.G. Iron / CF8 / CF8MShaft: AISI 304 , AISI 316 , AISI 410Seat: EPDM / Nitrile / White EPDM
End Connection: Wafer Type / Flanged End To ASME B 16.5 (150#/300#)
Pressure Rating: PN10 / PN16
Temperature: Upto 90 °C

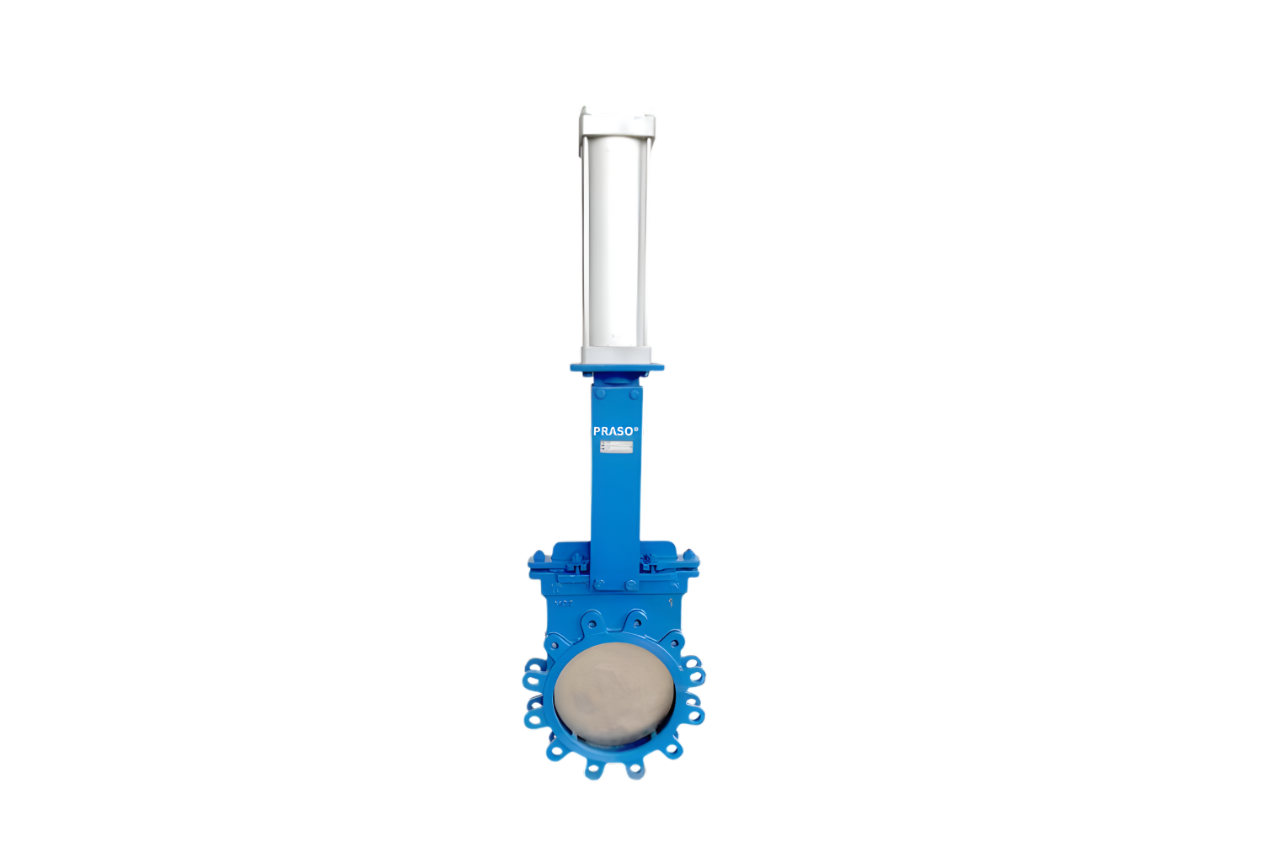

Pneumatic Cylinder Operated Knife Edge Gate Valve

Barrel: Aluminium / Stainless Steel
Piston Rod: Stainless Steel / EN-8
Seal: Nitrile / Viton
End Cover: Aluminum Pressure Die Cast / Cast Iron
Knife Gate Valve Detail: –Body: IS 210 FG 200/220 Cast Iron / WCB / CF8 / CF8M
Knife Plate: SS 304 / SS 316
Trim: CF8 / CF8M
Seat: Nitrile / PTFE / Metal to Metal
End Connection: Lug Type End Suitable To ANSI B 16.1 (150#)
Mfg Std.: Generally Confirming To MSS SP 81
Insp & Test Std.: Generally Confirming To MSS SP 81

Pneumatic Cylinder Operated Y Type Control Valve Screwed End

Actuation: Single Acting Air To Open, Spring To Close
Body: Stainless Steel
Cap: Stainless Steel
Piston Spring: Stainless Steel
Piston Indicator: Nylon
Seals: Nitrile
Flange: Alluminium Alloy
Valve Details: –
Body: ASTM A 351 Gr. CF8 / CF8M
Piston: ASTM A 351 Gr. CF8 / CF8M
Seat: PTFE
End Connection: Screwed End / Flanged End To ASME B 16.5 150#
Pressure: 0 Bar To 16 Bar
Temperature: Upto 180 °C

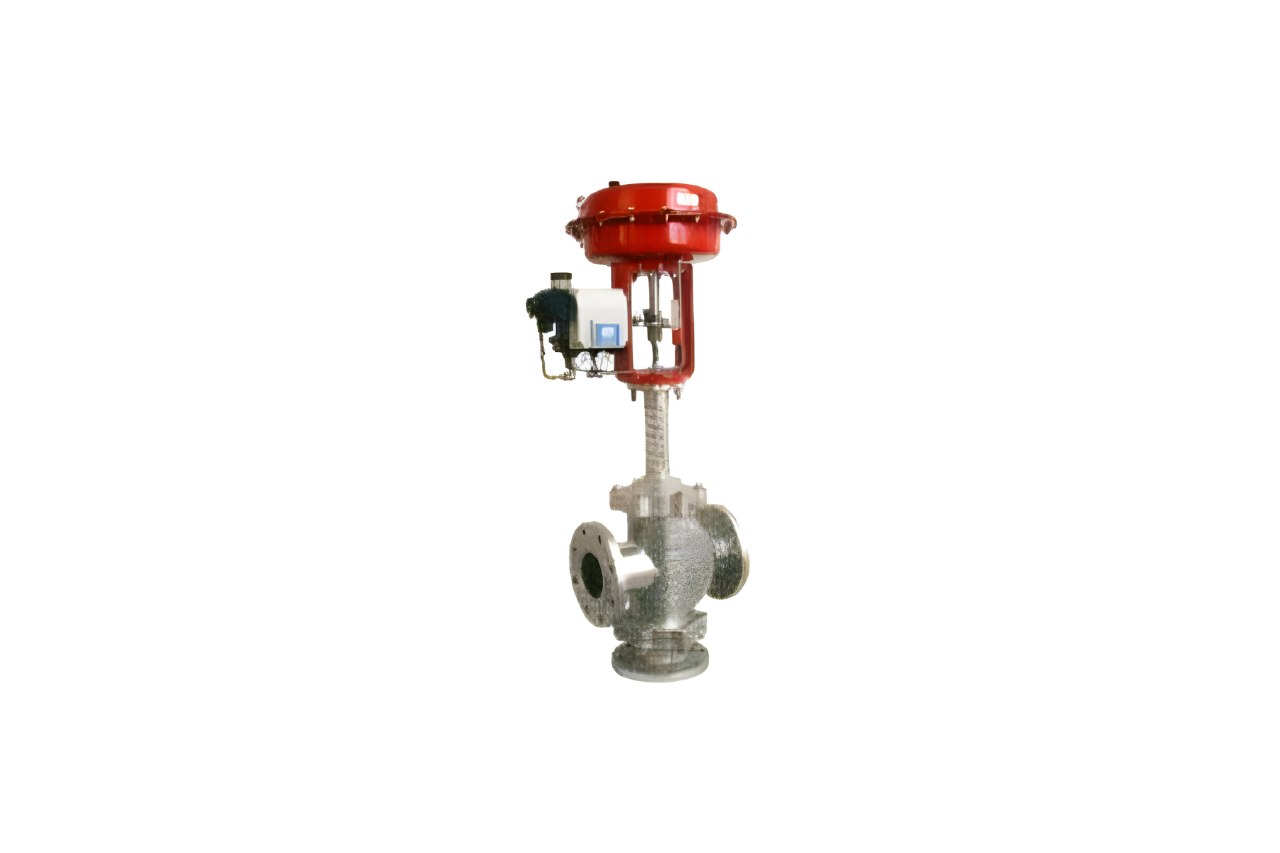

2/2 & 3/2 Way Pneumatic Diaphragm Operated Control Valve

Type: Diaphragm Type On-Off Control Valve
Diaphragm Cover: Imported Plastic
Body: ASTM A 216 Gr. WCB /ASTM A 351 Gr. CF8
Internal Parts: S.S 304
Seat: Metal To Metal
End Connection: Flanged End To ASME B 16.5 (150#)
Pressure: 10 Bar Up to 4
Hyd-Test: Body – 30 Kg/Cm2

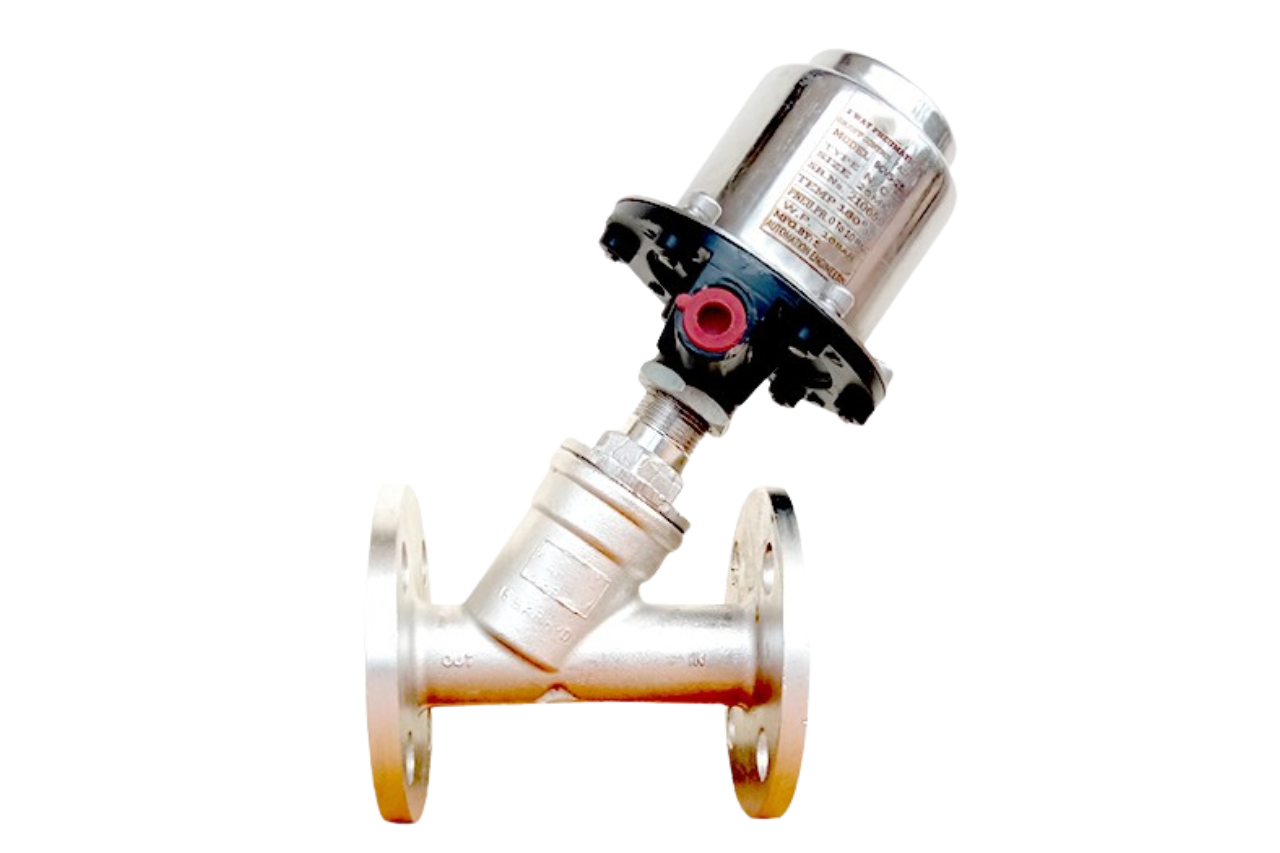

Pneumatic Cylinder Operated Y Type Control Valve Flange End

Actuation: Single Acting Air To Open, Spring To Close
Body: Stainless Steel
Cap: Stainless Steel
Piston Spring: Stainless Steel
Piston Indicator: Nylon
Seals: Nitrile
Flange: Alluminium Alloy
Valve Details: –Body: CF8 / CF8M
Working Parts: SS 304 / SS 316
Seat: PTFE
End Connection: Flanged To ASME B 16.5 150#
Pressure: Upto 16 Bar
Temperature: Upto 180°C

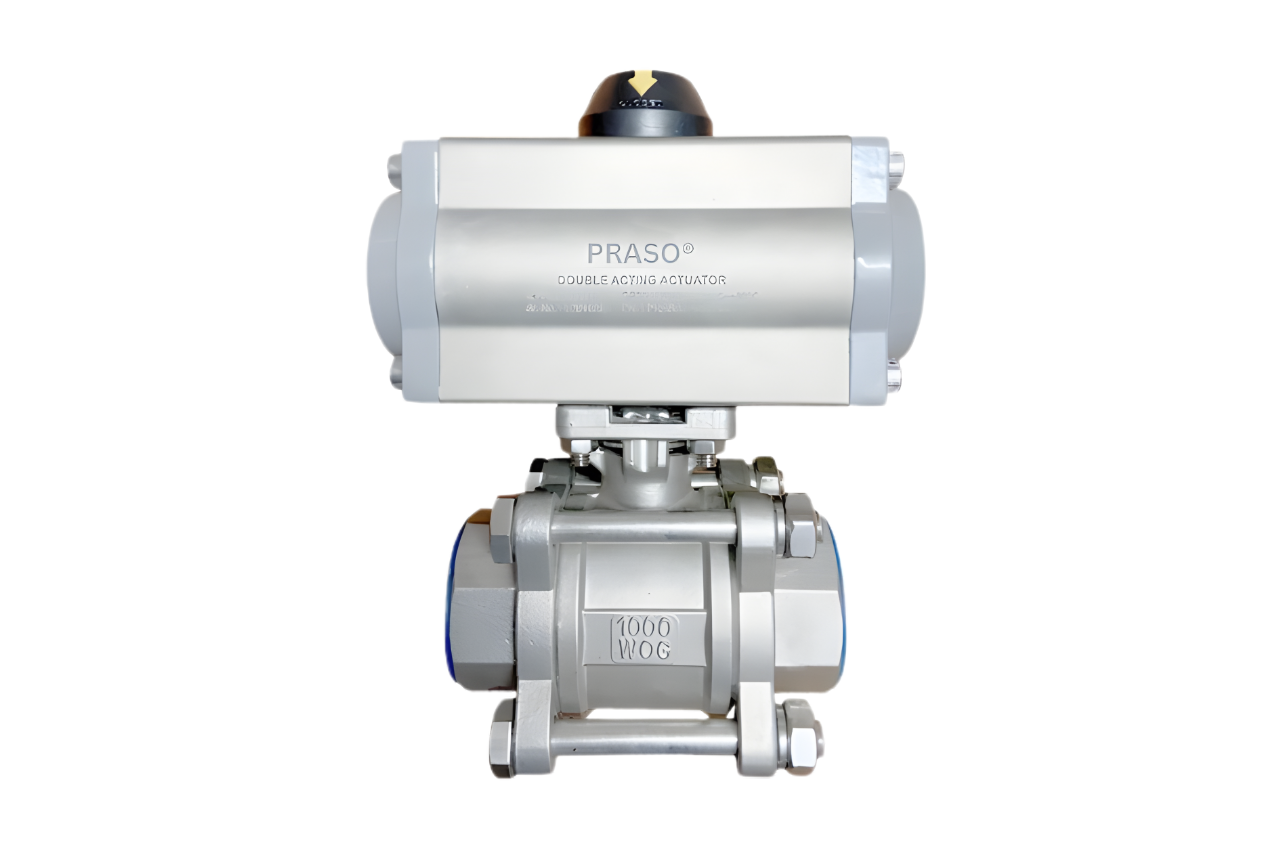

Pneumatic Actuator Operated Three Piece Ball Valve Screwed End

Actuation: Double Acting Air To Open, Air To Close, 90° – Rotary Turn
Body: Aluminum Hard Anodized
Rack: Aluminum Pressure Die Cast
Caps: Aluminum Pressure Die Cast
Shaft: En8
Seals: Nitrile
Ball Valve Details: –Body: WCB / CF8 / CF8M
Ball: CF8 / CF8M
Seals: PTFE
End Connection: Screwed End To BSP F / Socket Weld
Pressure: Upto 10 Kg/Cm2
Temperature: Upto 180 °C

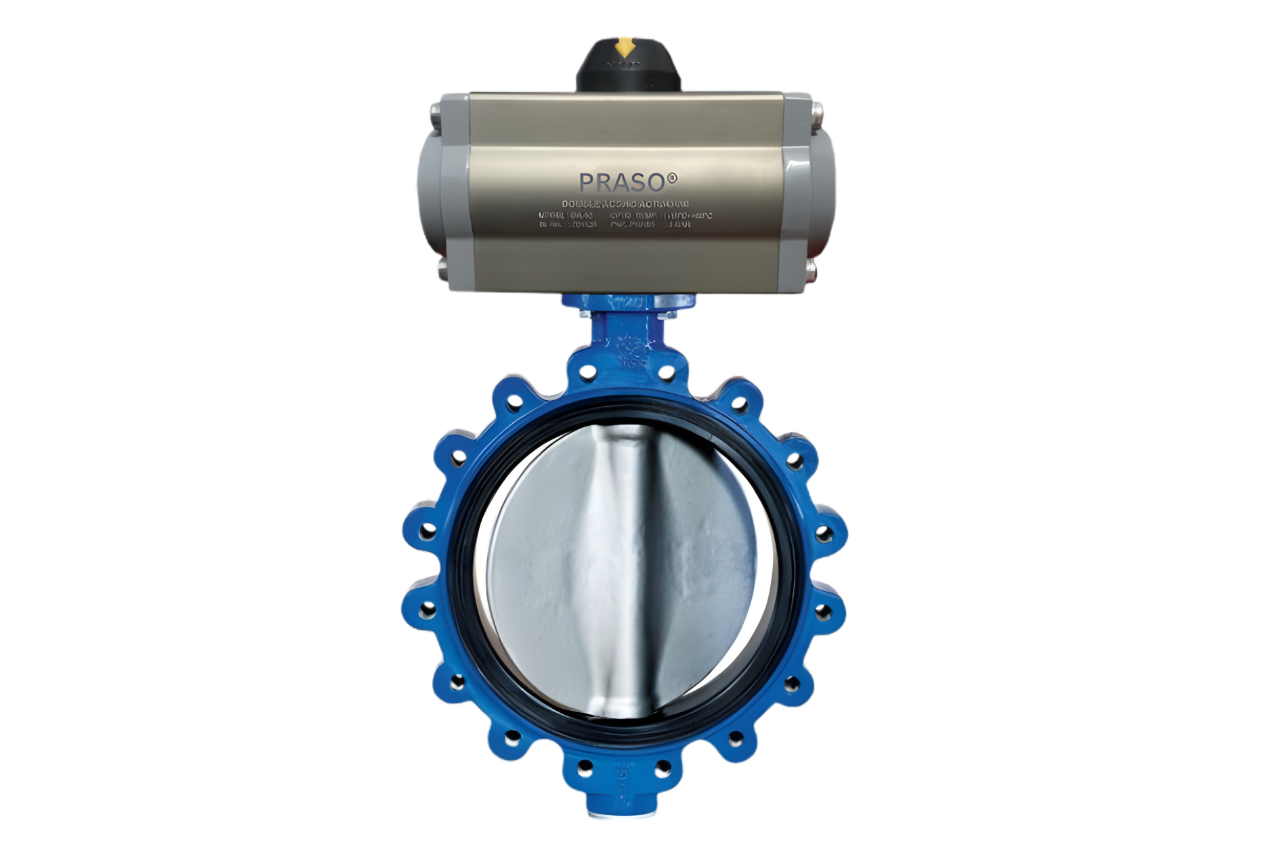

Pneumatic Actuator Operated Lug Type Butterfly Valve

Body: Aluminum Hard Anodized
Rack: Aluminum Pressure Die Cast
Caps: Aluminum Pressure Die Cast
Shaft: En8
Seals: Nitrile
Body: Cast Iron / WCB
Disc: S.G. Iron / CF8 / CF8M
Seat: Nitrile
End Connection: Wafer Lug Type To ASME B 16.1
Pressure: PN 10 / PN 16
Temperature: Upto 90 °C

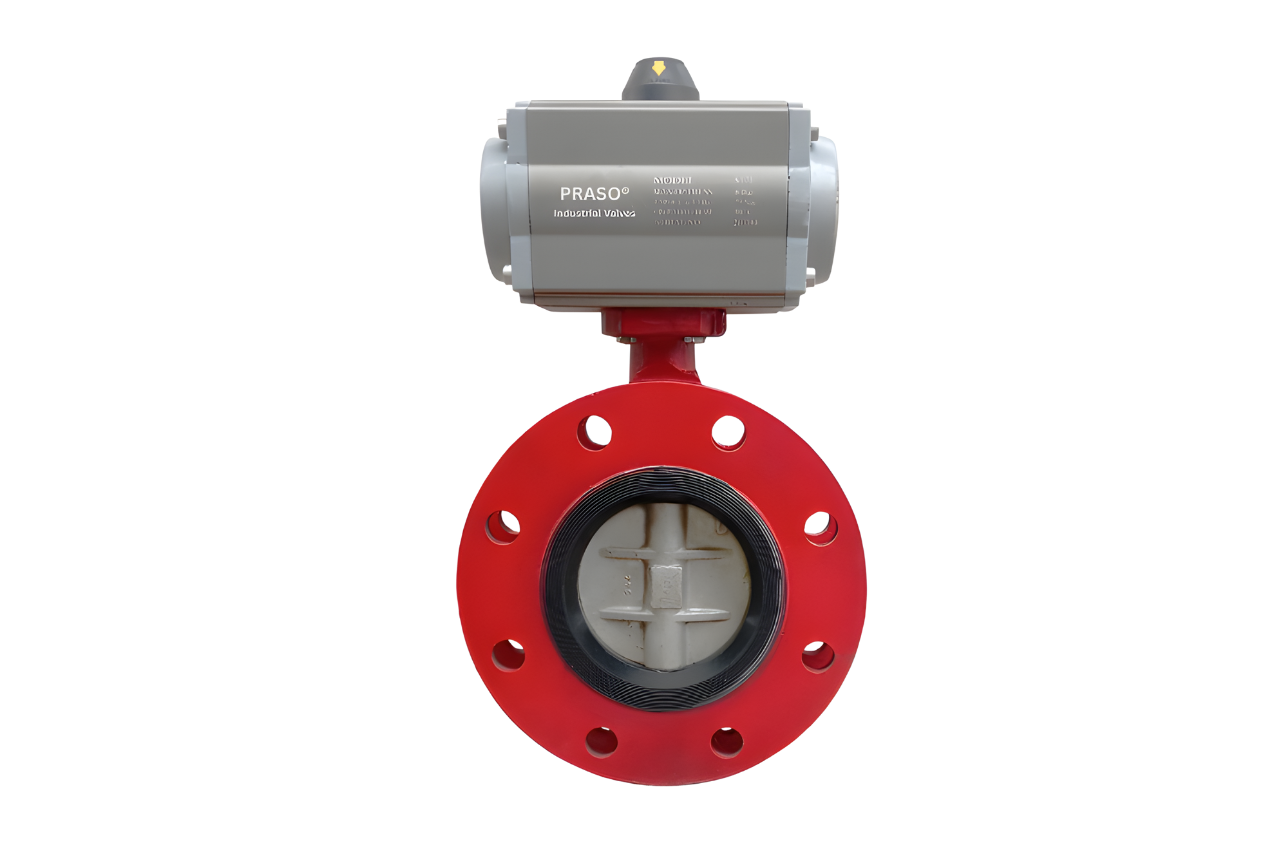

Pneumatic Actuator Operated Double Flange Butterfly Valve

Actuation: Double Acting – Air to Open, Air to Closed Fail Safe – Stay Put
Body: Aluminum Hard Anodized
Rack: Aluminum Pressure Die Cast
Caps: Aluminum Pressure Die Cast
Shaft: En8
Seals: Nitrile
Body: Cast Iron / WCB
Disc: S.G. Iron / CF8 / CF8M
Seat: Nitrile
End Connection: Double Flange End To ASME B 16.5 150#
Pressure: PN 10 / PN 16
Temperature: Up To 90° C

Pneumatic Actuator Operated Polypropylene Butterfly Valve

Actuation: Double Acting – Air to Open, Air to Closed Fail Safe – Stay Put
Body: Aluminum Hard Anodized
Rack: Aluminum Pressure Die Cast
Caps: Aluminum Pressure Die Cast
Shaft: En8
Seals: Nitrile
Body: Polypropylene
Disc: Polypropylene
Seat: Nitrile
End Connection: Wafer Type End To ASME B 16.1 150#
Pressure: 0 To 7 Kg/Cm2
Temperature: Up To 90° C

Pneumatic Actuator Operated UPVC Butterfly Valve Wafer End

Actuation: Double Acting – Air to Open, Air to Closed Fail Safe – Stay Put
Body: Aluminum Hard Anodized
Rack: Aluminum Pressure Die Cast
Caps: Aluminum Pressure Die Cast
Shaft: En8Seals: Nitrile
Body: UPVC
Disc: UPVC
Seat: Nitrile
End Connection: Wafer Type End To ASME B 16.1 150#
Pressure: 0 To 7 Kg/Cm2
Temperature: 70° C

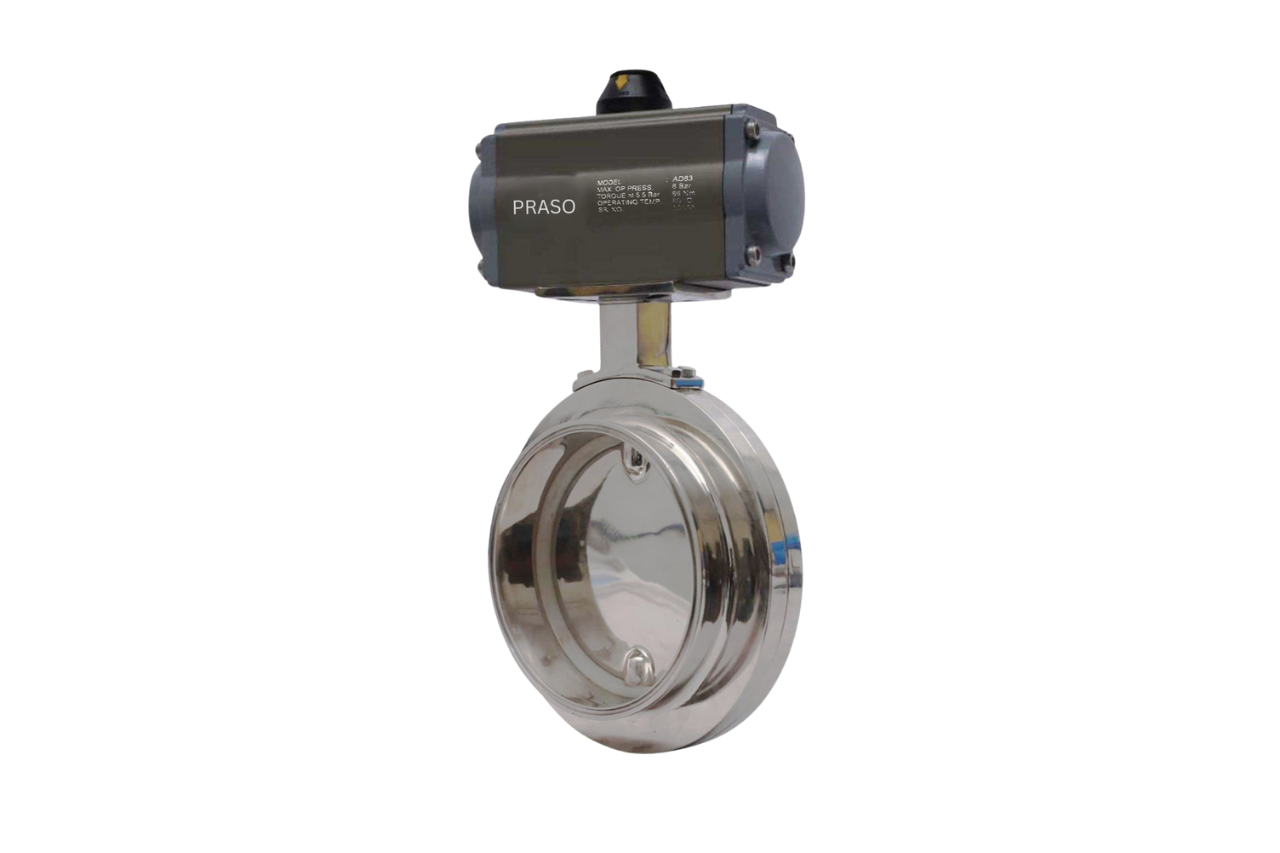

Pneumatic Actuator Operated Pharma Butterfly Valve TC End

Actuation: Double Acting – Air to Open, Air to Closed Fail Safe – Stay Put
Body: Aluminum Hard Anodized
Rack: Aluminum Pressure Die Cast
Caps: Aluminum Pressure Die Cast
Shaft: En8
Seals: Nitrile
Body: AISI 304 / AISI 316
Disc: AISI 304 / AISI 316
Seat: Silicon / EPDM
End Connection: Triclover End / One Side TC End
Pressure: Upto 4 Kg/cm2 / 0 To 7 Kg/cm2
Temperature: Upto 120 °C

Pneumatic Actuator Operated Pharma Butterfly Valve Wafer End

Actuation: Double Acting – Air to Open, Air to Closed Fail Safe – Stay Put
Body: Aluminum Hard Anodized
Rack: Aluminum Pressure Die Cast
Caps: Aluminum Pressure Die Cast
Shaft: En8
Seals: Nitrile
Body: AISI 304 / AISI 316
Disc: AISI 304 / AISI 316
Seat: Silicon / EPDM
End Connection: Wafer Type End To ASME B 16.1 150#
Pressure: 3 To 4 Kg/Cm2
Temperature: Up To 120° C

Pneumatic Cylinder Operated Cement Butterfly Valve

Barrel: Aluminum
Piston Rod: Stainless Steel
Seals: Nitrile
End Cover: Aluminum / Cast Iron
Body: Aluminium
Disc: WCB With Epoxy Coated
Seat: Nitrile / EPDM / Silica GEL / Food Grade EPDM
End Connection: Double Flange / One Side Flange One Side Collar
Pressure: 0 To 7 Kg/Cm2
Temperature: Upto 90 °C

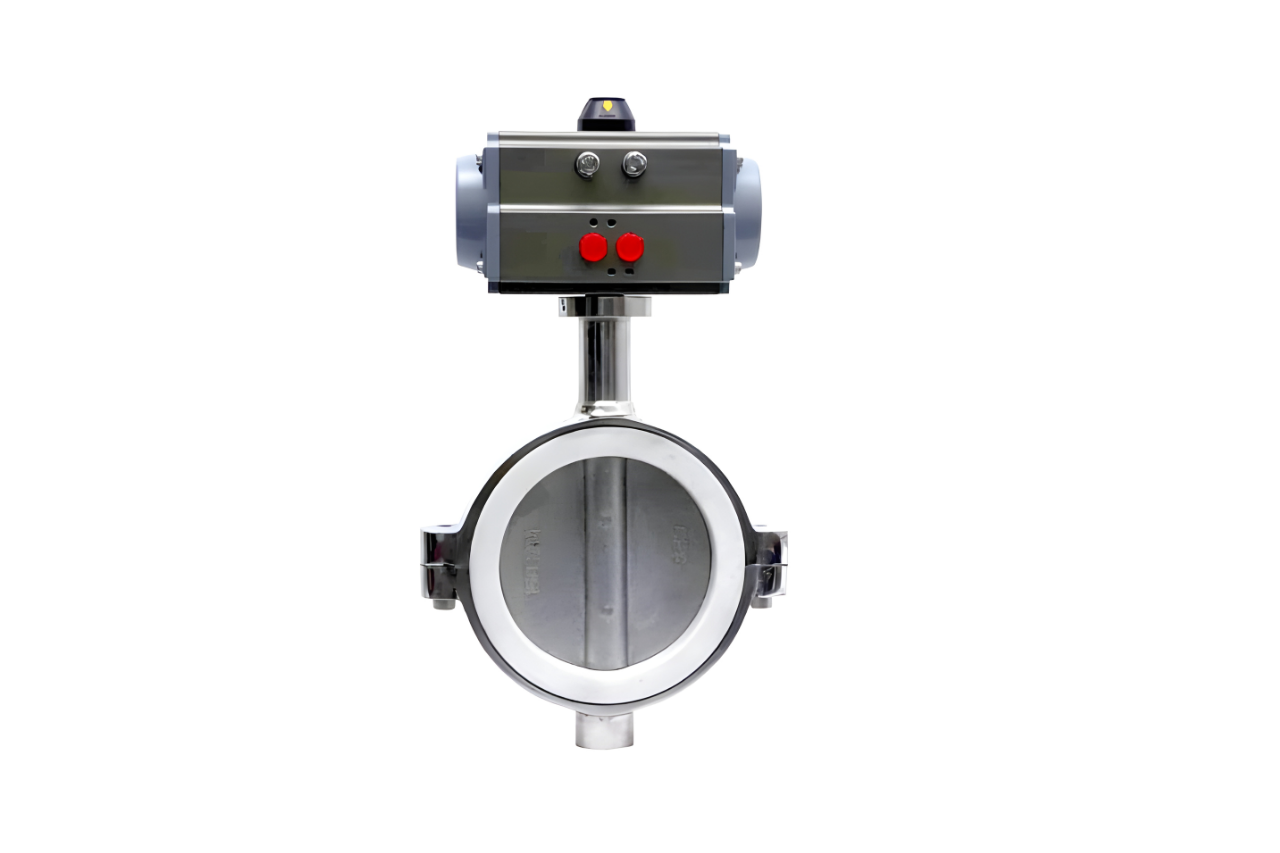

Pneumatic Actuator Operated PFA / FEP Line Butterfly Valve

Actuation: Double Acting – Air to Open, Air to Closed Fail Safe – Stay Put
Body: Aluminum Hard Anodized
Rack: Aluminum Pressure Die Cast
Caps: Aluminum Pressure Die Cast
Shaft: En8
Seals: Nitrile
Body: S.G. Iron / CF8 / CF8M
Disc: CF8 / CF8M
Seat: PTFE
End Connection: Wafer Type End To ASME B 16.1 150#
Pressure: Upto 7 Kg/cm2
Temperature: Upto 180 °C

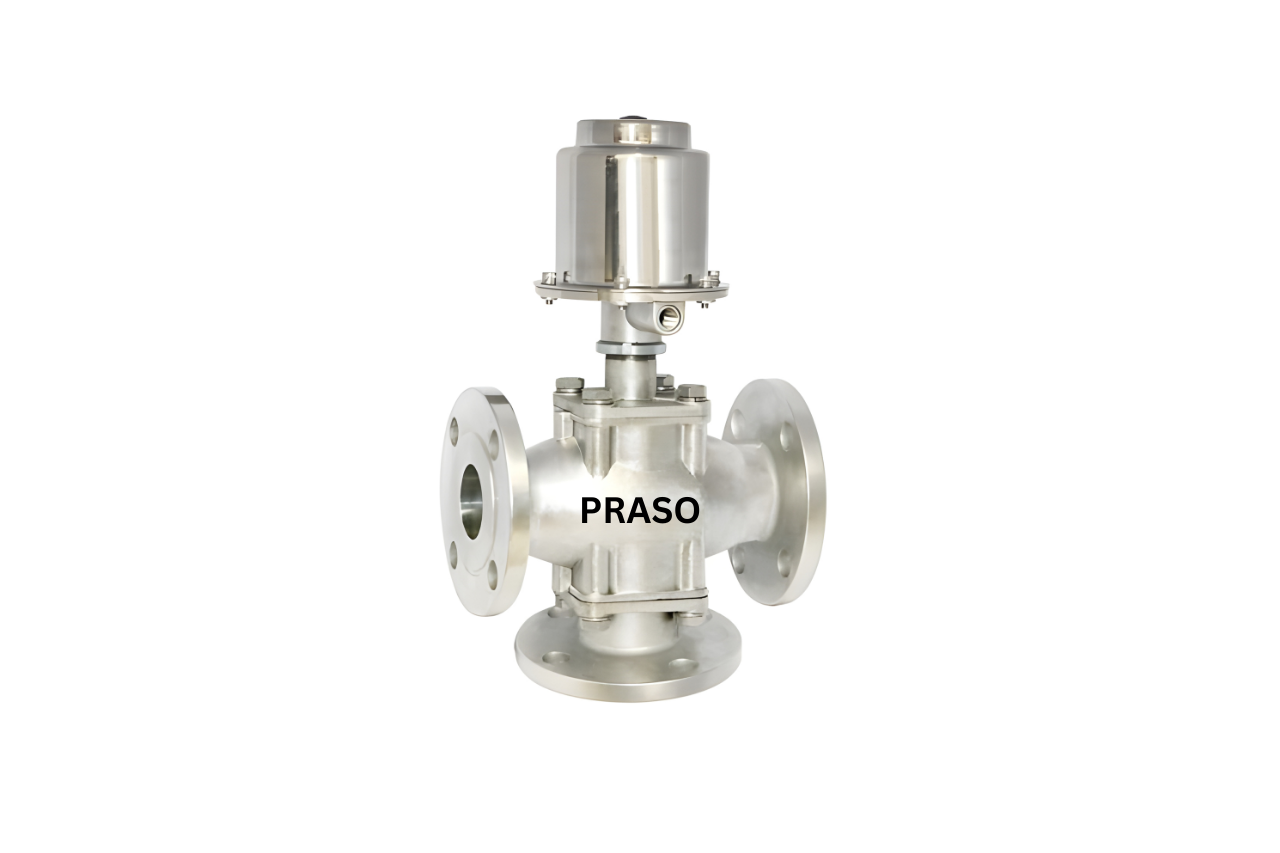

Pneumatic Cylinder Operated Normally Opne/Close Type Control Valve

Actuator Motion: Linear
Actuation: Single Acting Air To Open, Spring To Close
Top Cover: Cast Iron
Barrel: Alluminium
Shaft: En-8 Hard Chrome
Seal: Buna N
Body: CF8 / CF8M
Bonnet: CF8 / CF8M
Seat: Metal
End Connection: Screwed End / Flange End To ASME B 16.5 150#
Pressure: Upto 7 Kg/Cm²
Temperature: 450 ºC

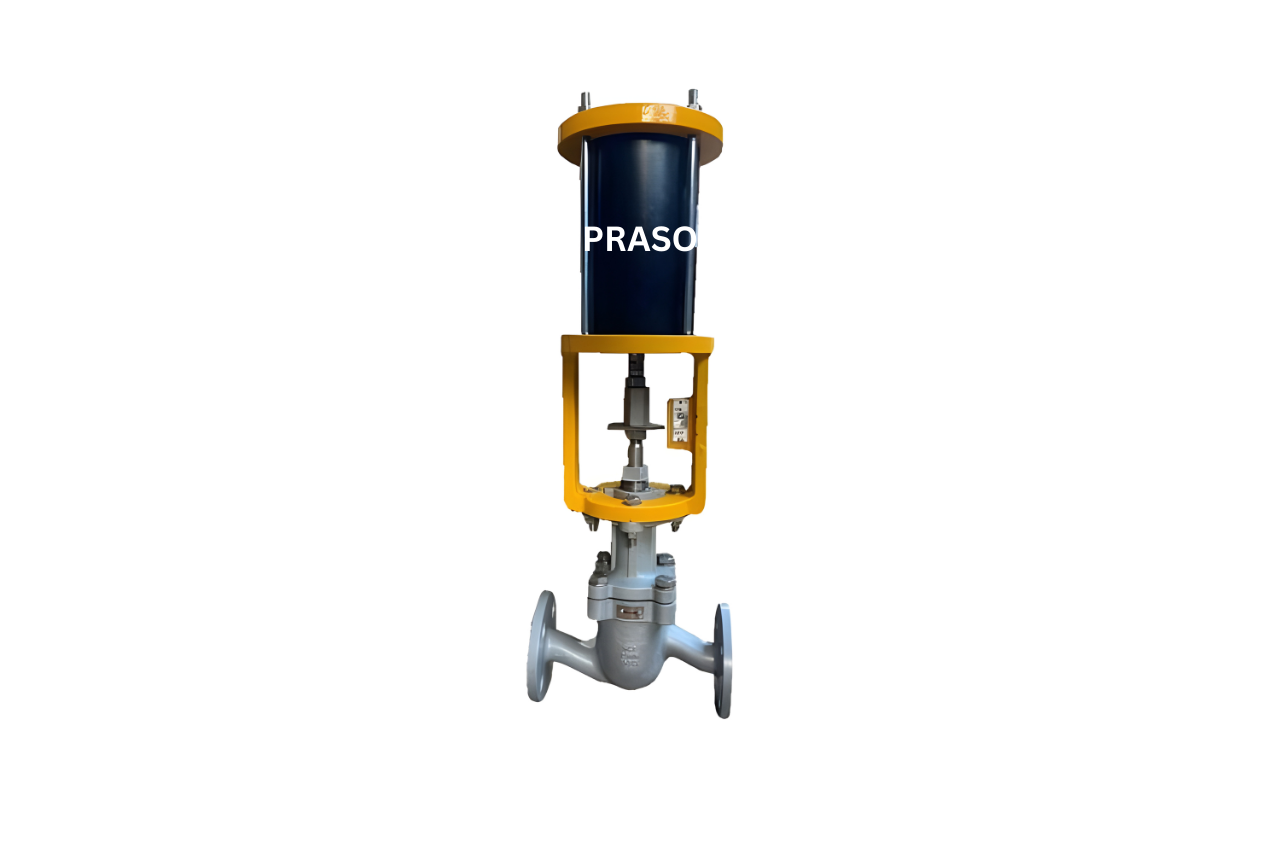

Pneumatic Cylinder Operated On/Off Type Control Valve Flange End

Actuator Motion: Linear
Actuation: Single Acting Air To Open, Spring To Close
Top Cover: Cast Iron
Barrel: Alluminium
Shaft: En-8 Hard Chrome
Seals: Buna N
Body: WCB
Trims: CF
Seat: Metal
End Connection: Flange End To ASME B 16.5 150#
Pressure: Upto 7 Kg/Cm2
Temperature: Upto 450 °C

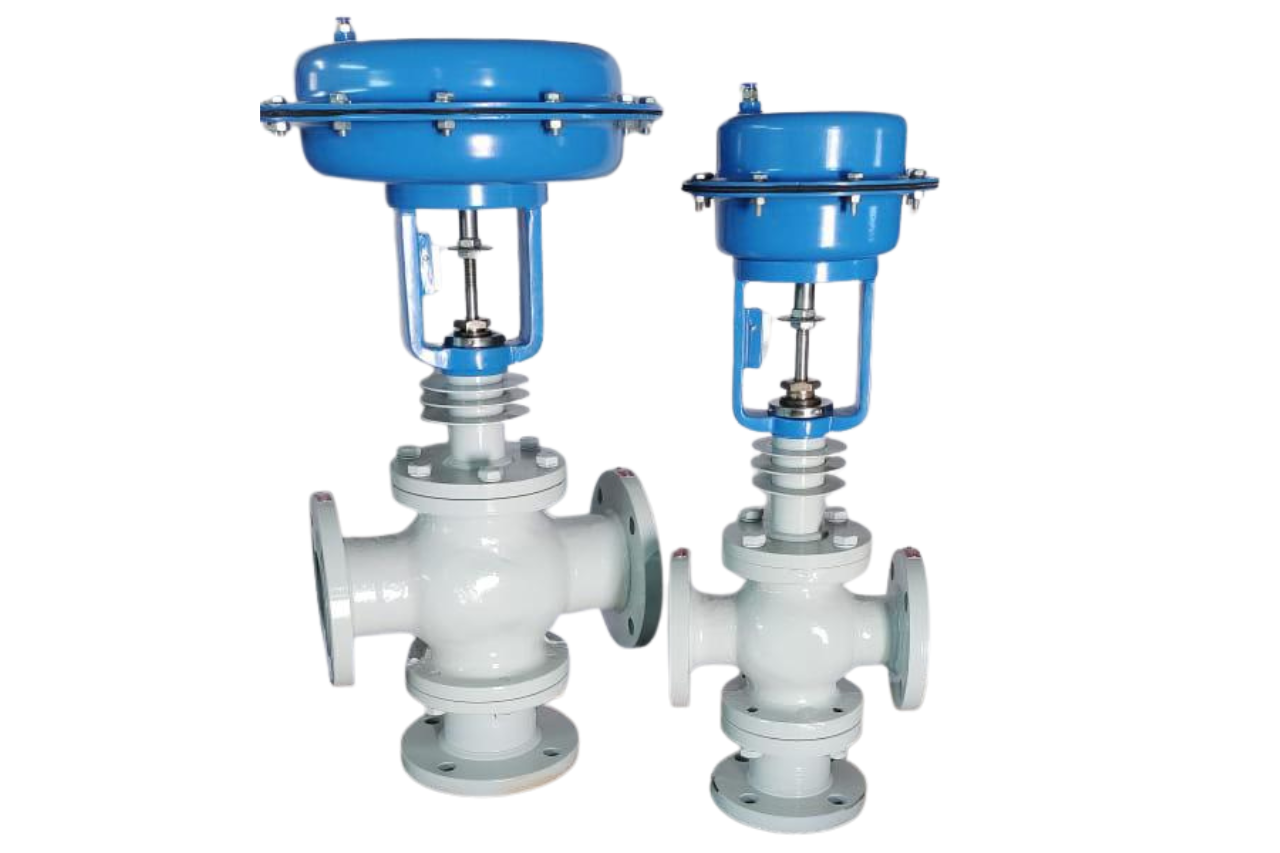

Diaphragm Operated Modulating Type Control Valve

Actuator Motion: Linear
Actuation: Single Acting Air To Open, Spring To Close, 90° – Rotary Turn
Top Cover: M.S.
Bottom Cover: M.S.
Diaphragm: Nitrile
Stem: SS
Body: WCB / CF8 / CF8M
Trims: CF8 / CF8M
Seat: Metal
End Connection: Flange End To ASME B 16.5 (150#/300#)
Pressure: Upto 10 Bar
Temperature: Upto 450 °C
