Manual Valves

We deliver robust, high-quality, and cost-effective manual valve products for systems requiring precise hand-operated control.

Manual Valves

Single Piece Ball Valve Screwed End

Body: ASTM A 351 Gr CF8 / CF8M / MS (EN 8)
Ball: SS 304 / SS 316
Seat: PTFE
End Connection: Screwed To BSP F / NPT F / Socket Weld
Pressure: Body : 425 Psig / 30Kg/Cm2 Seat : 300Psig / 21Kg/Cm2
Temperature: Upto 180°C

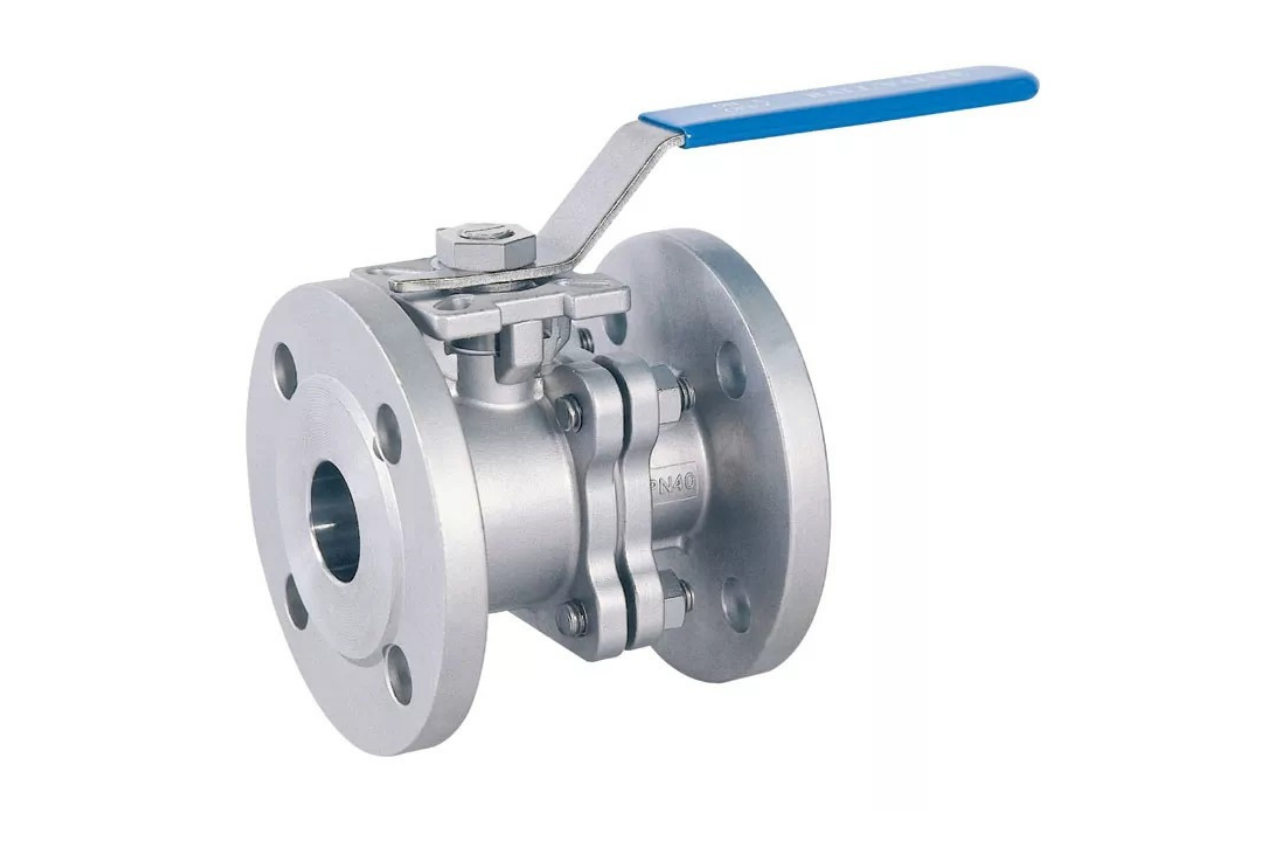

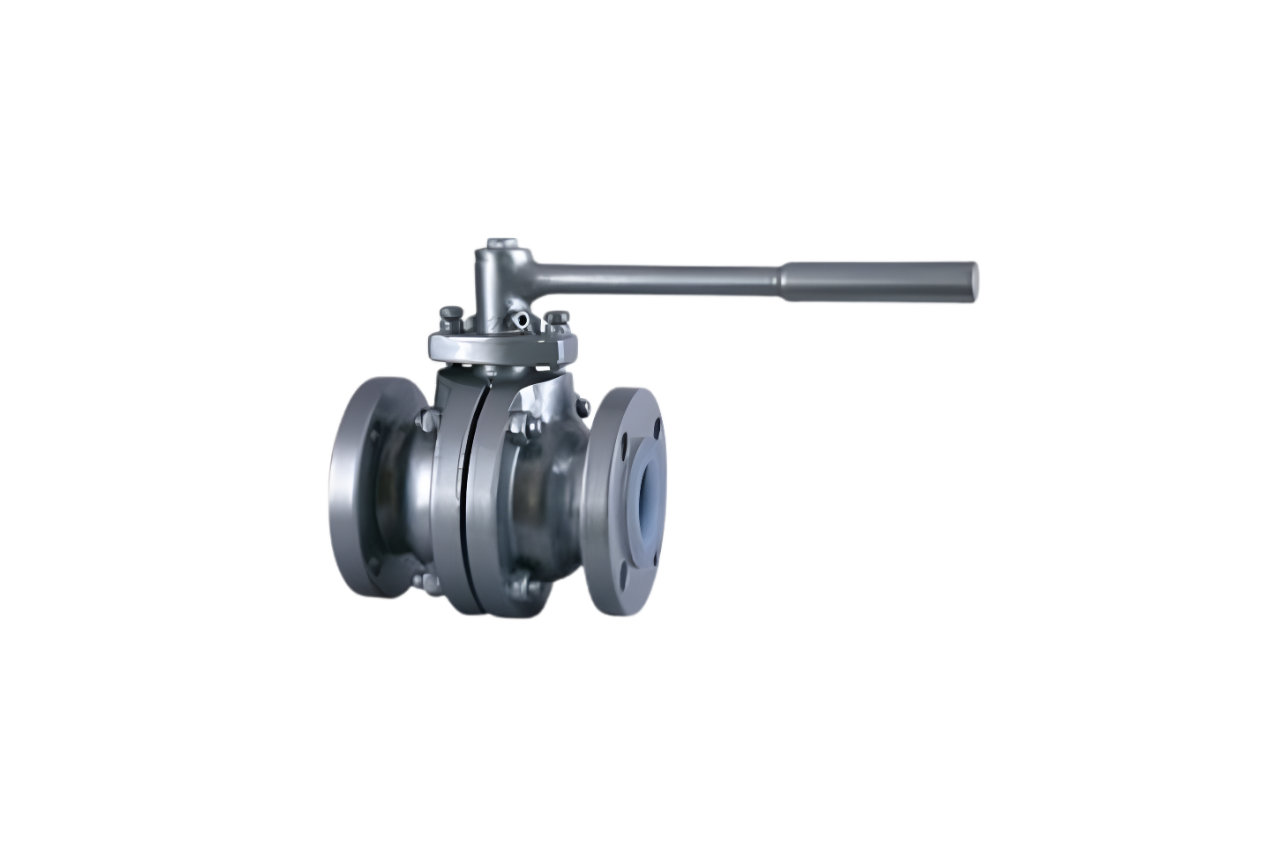

Two Piece Ball Valve Flanged End 150#/300#

Body: CF8 (SS-304) / CF8M (SS-316) / WCB / MS (EN 8)
Ball: SS-304 / SS-316
Seat: PTFE
End Connection: Screwed To BSP F / Flanged
Pressure: Body : 77Kg/Cm2) Seat : 7Kg/Cm2)
Class (#): 150# / 300# / 600# / 800# / 900#
Application: Air / Oil / Water / Steam
Size Range: 15 MM To 1500 MM

Three Piece Design Ball Valve Flanged End

Body: IS 210 200/220 Cast Iron / WCB / CF8 (SS-304) / CF8M (SS-316)
Seat & Seal: PTFE
Ball: CF8 (SS-304) / CF8M (SS-316) / WCB
End Connection: Flanged To ASME B 16.5 RF
Nuts: M.S. / S.S.
Steam: CF8 (SS-304) / CF8M (SS-316)
Class (#): 150# / 300 #
Size Range: 15 MM To 300 MM

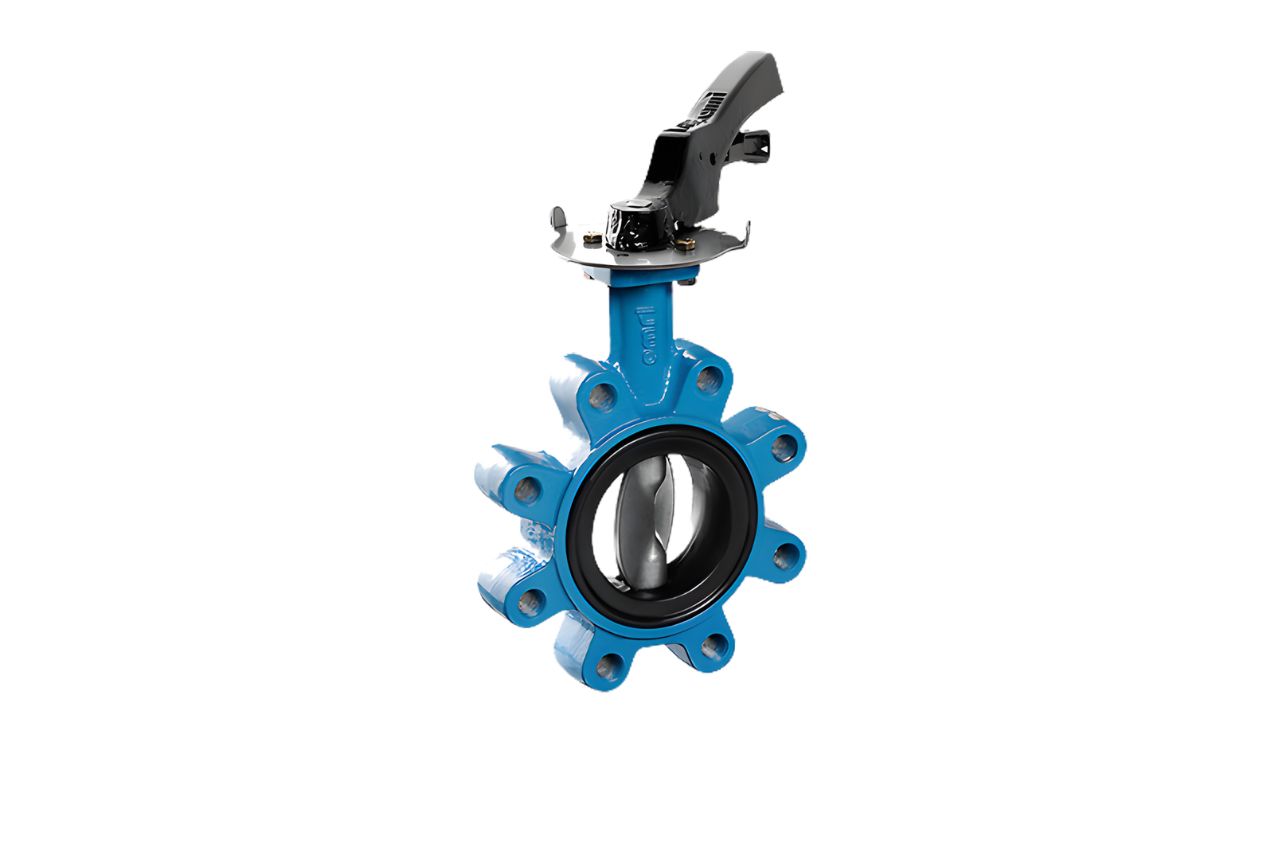

Centric Disc Butterfly Valve Wafer Lug Type End

Body: ASTM A 351 Gr CF8 / CF8M / MS (EN 8)
Ball: SS 304 / SS 316
Seat: PTFE
End Connection: Screwed To BSP F / NPT F / Socket Weld
Pressure: Body : 425 Psig / 30Kg/Cm2 Seat : 300Psig / 21Kg/Cm2
Temperature: Upto 180°C

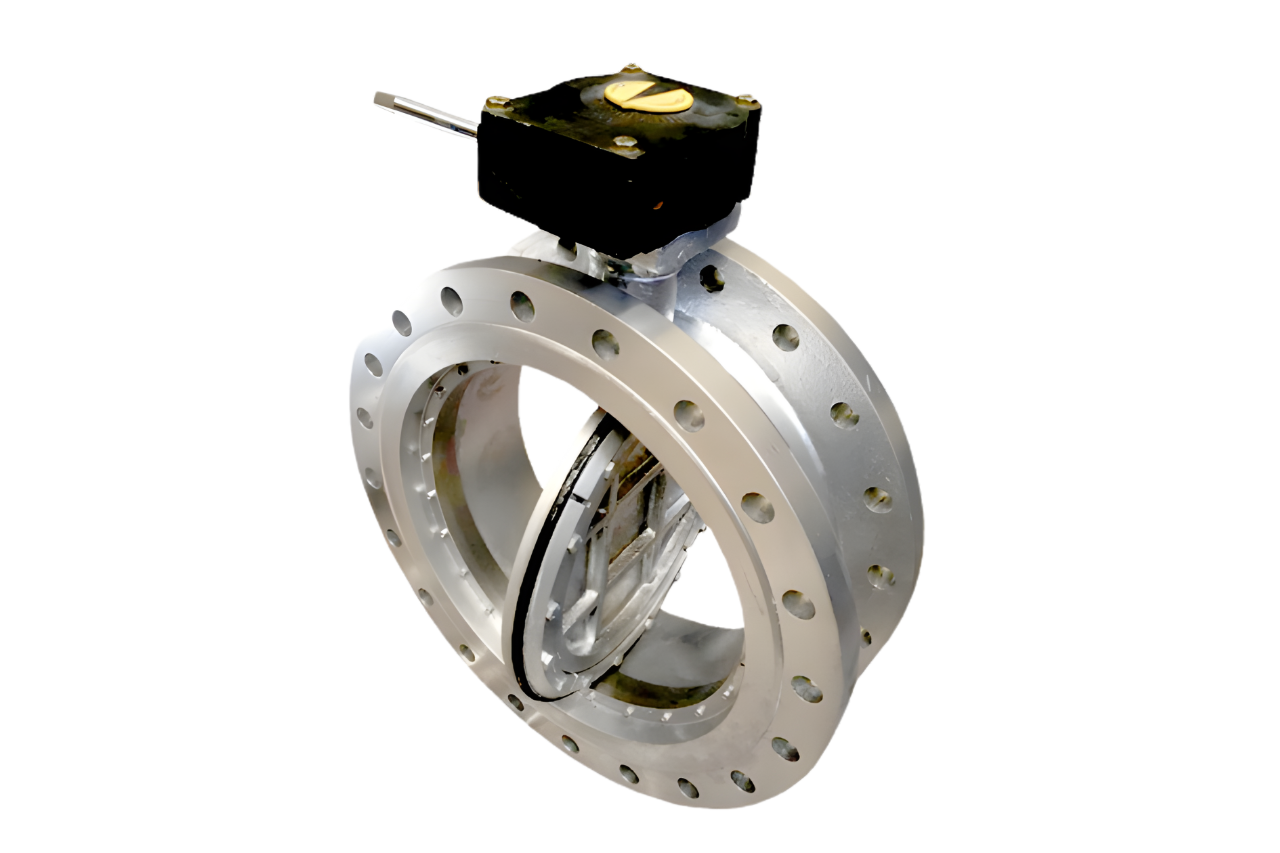

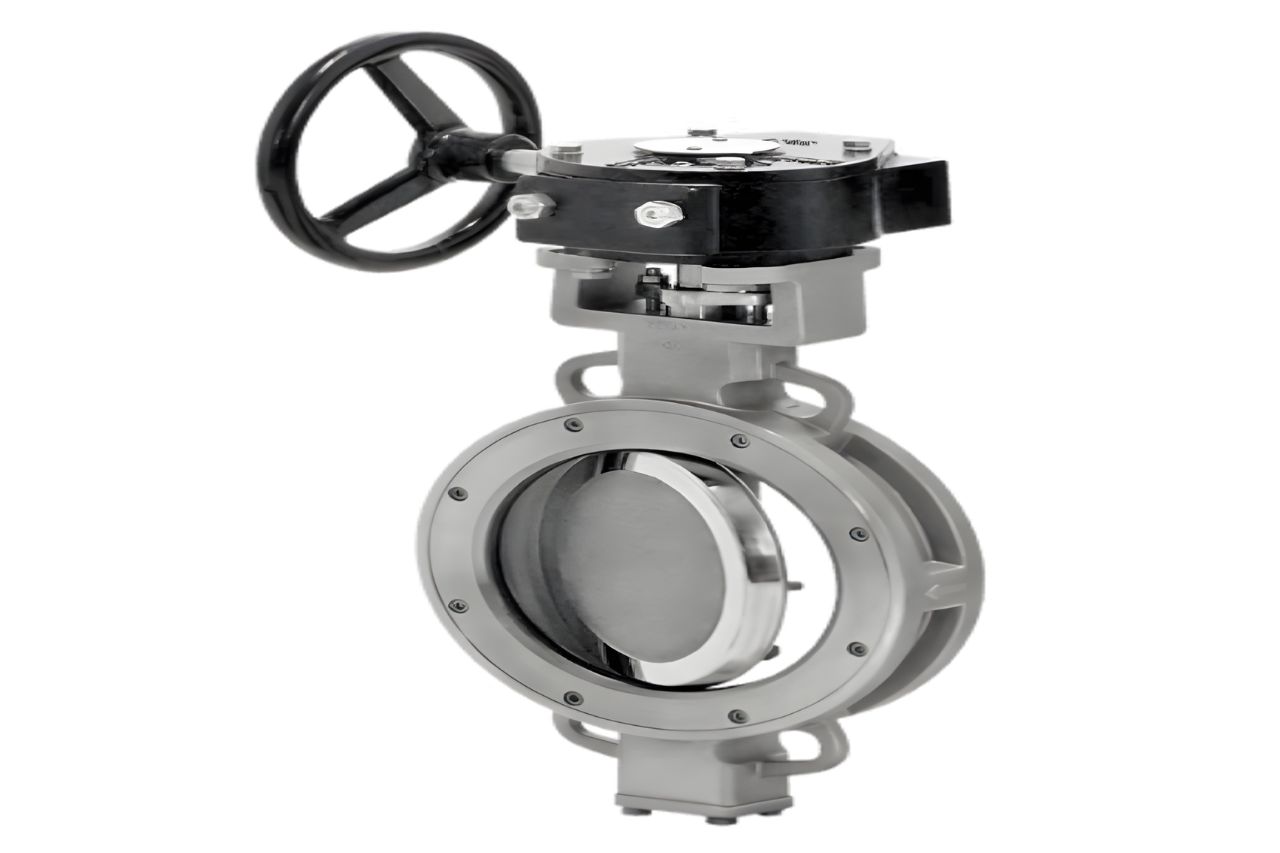

Double Offset Disc Butterfly Valve Wafer Type

Body: ASTM A 216 Gr. WCB / CF8 / CF8M
Disc: WCB / CF8 / CF8M
Seat: PTFE/ Graphite
End Connection: Wafer Type Suit to ANSI B 16.5 (150# / 300#)
Pressure: PN 10 / PN 20
Temperature: Upto 90°C

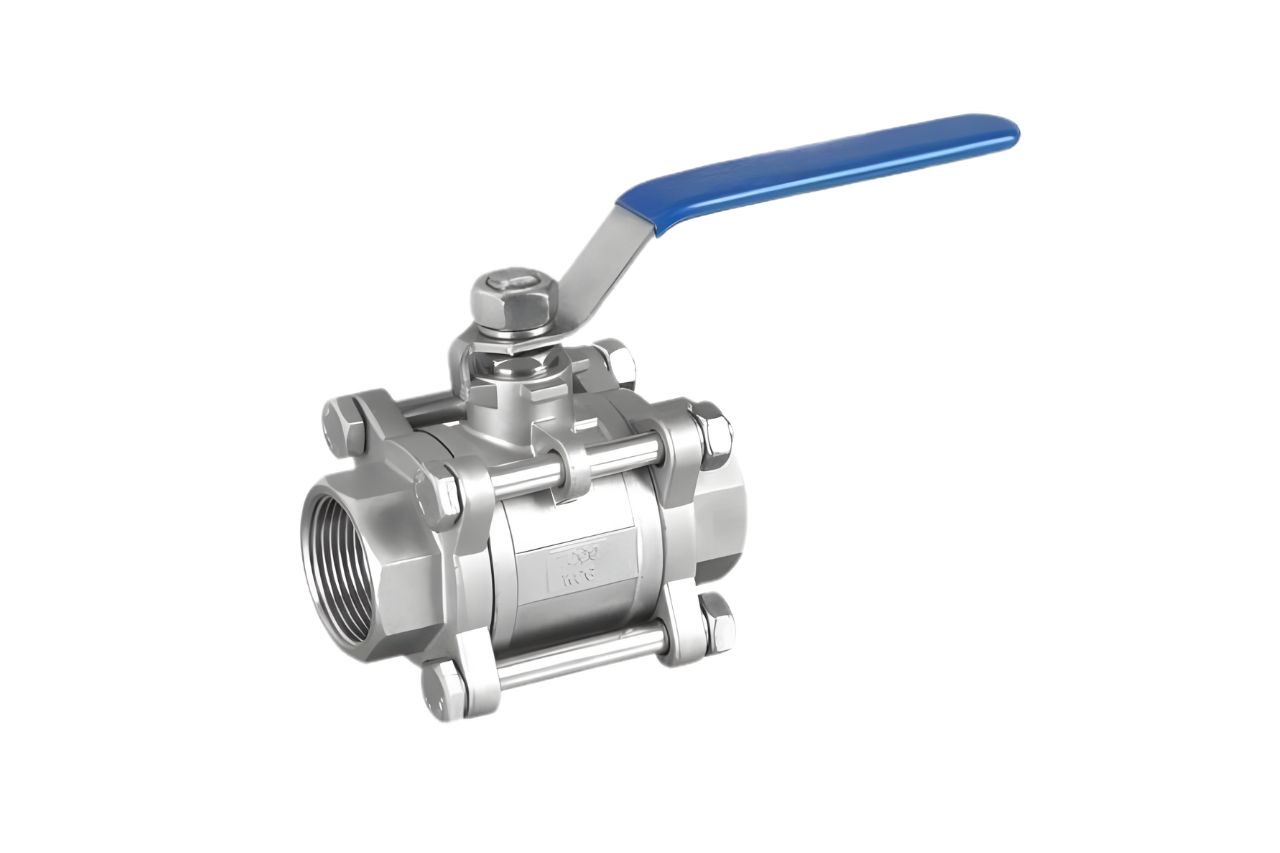

Three Piece Ball Valve Screwed End

Body: ASTM A 351 Gr CF8 (SS-304) / CF8M (SS 316) / MS (EN8)
Ball: SS 304 / SS 316Seat: PTFE
End Connection: Screwed To BSP F / NPT F / Socket Weld
Class (#): 150# / 300#
Pressure: Body : 30 Kg/Cm2 Seat : 21 Kg/Cm2
Temperature: Upto 180º

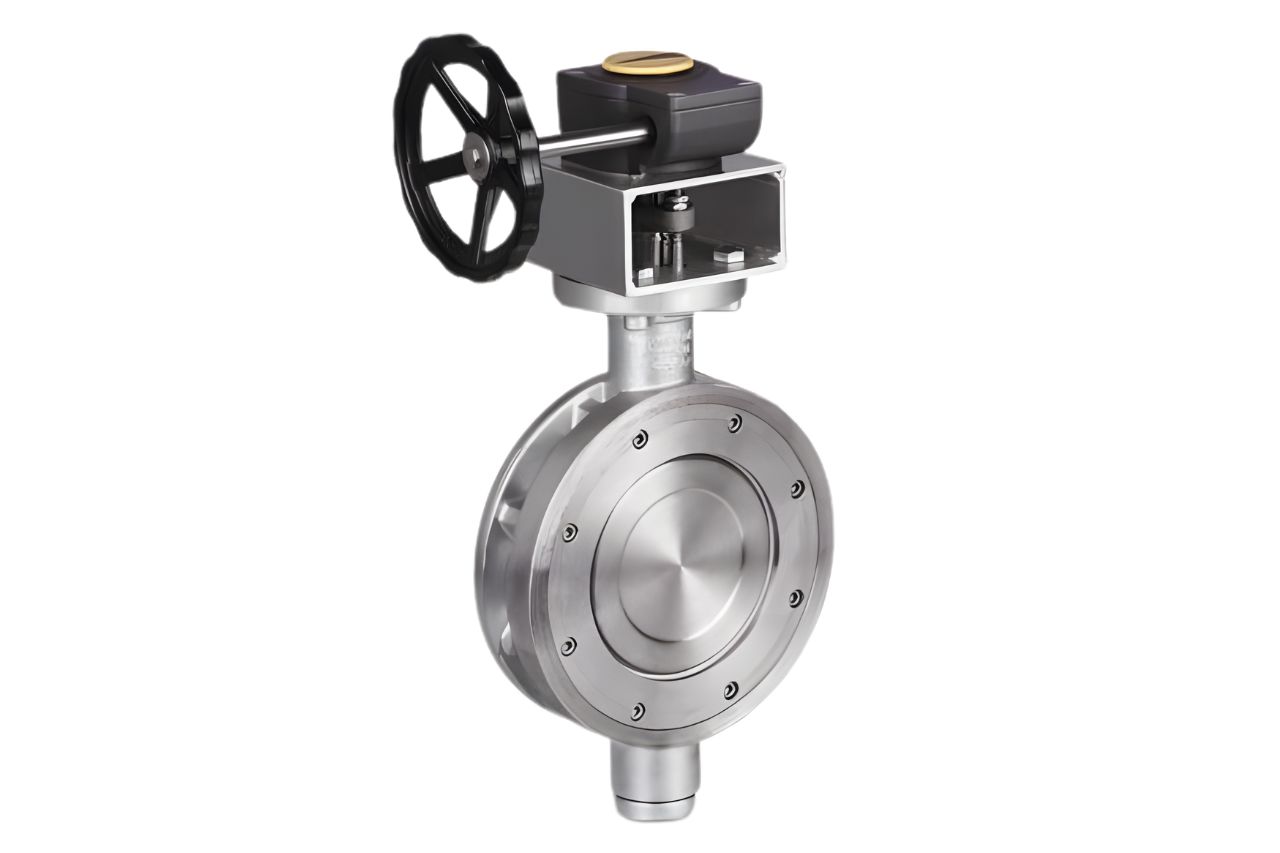

Triple Offset Disc Butterfly Valve Wafer Type

Body: ASTM A 216 Gr WCB (Cast Steel)/ CF8 / CF8M
Disc: WCB / CF8 / CF8M
Seat: PTFE / Metal
End Connection: Flanged To ASME B 16.5 150#
Pressure: PN 10
Temperature: Upto 400°C / 180°C

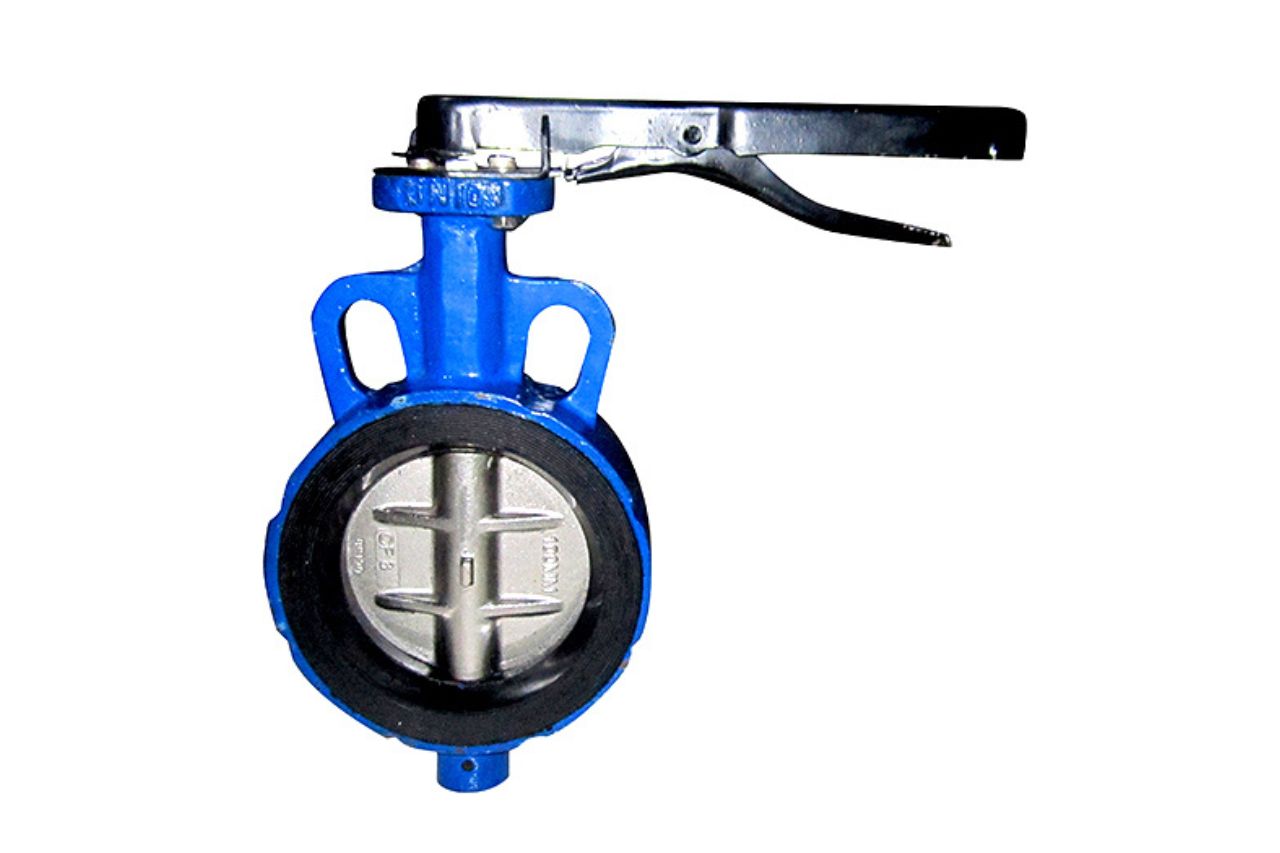

Centric Disc Butterfly Valve Wafer Type

Body: IS 210 Gr FG 200 (Cast Iron) / WCB / CF8 / CF8M
Disc: S.G. Iron /SS-304 (CF8) / SS-316 (CF8M) / WCB
Seat: Moulded Nitrile
End Connection: Wafer Type SUIT ANSI B 16.5 (150#)
Working Pressure: PN 10 / PN 16
Temperature: Upto 90°C
Seat Leakage: Tight Shut Off

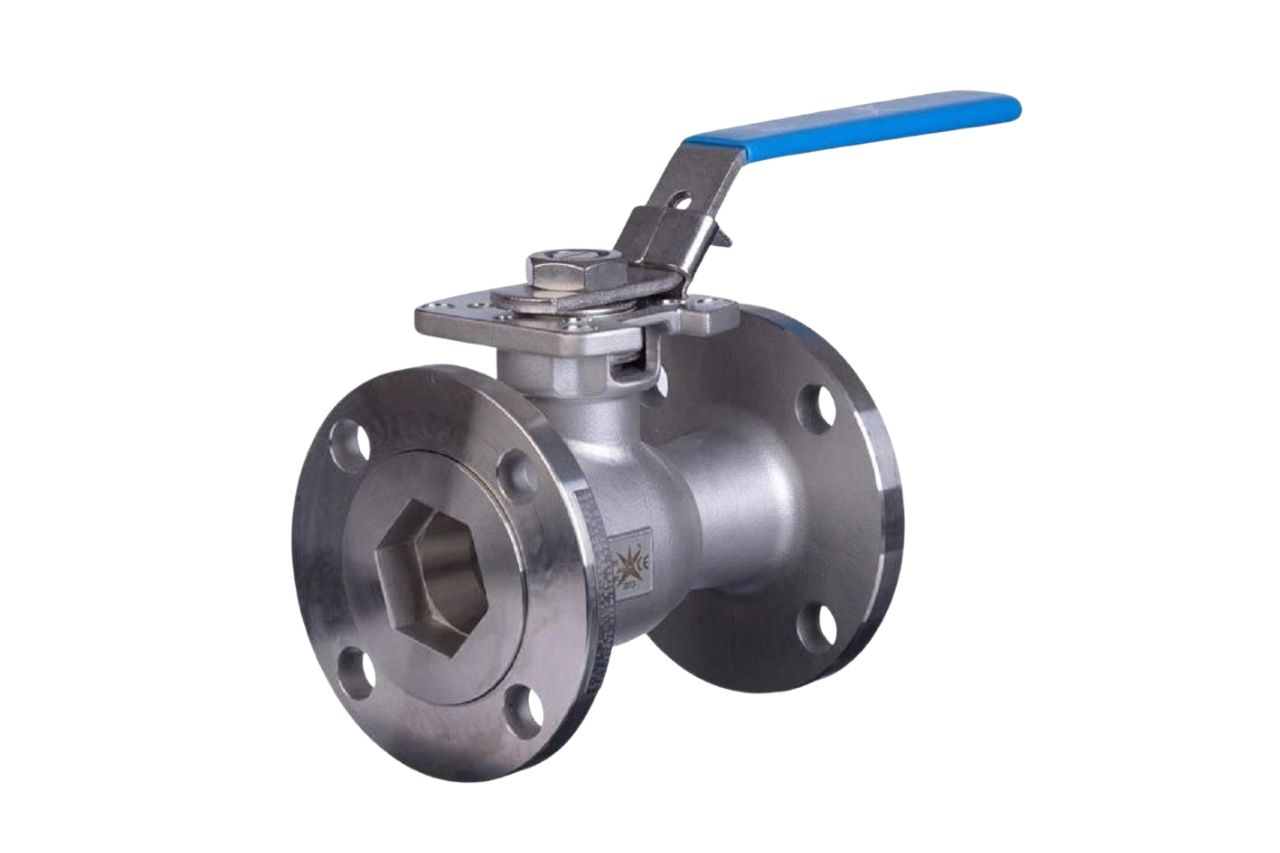

Single Piece Design Ball Valve Flanged End

Body: WCB / CF8 / CF8M / CF3 / CF3M
Ball: CF8 / CF8M / WCB
Seat: PTFE
Lever: Carbon Steel With PVC Sleeve
End Connections: Flanged To ANSI B 16.5 (150#)
Class: 150# , 300#,
Pressure: Body : 30 Kg/Cm2 Seat : 200 Kg/Cm2
Temperature: Upto 180° C

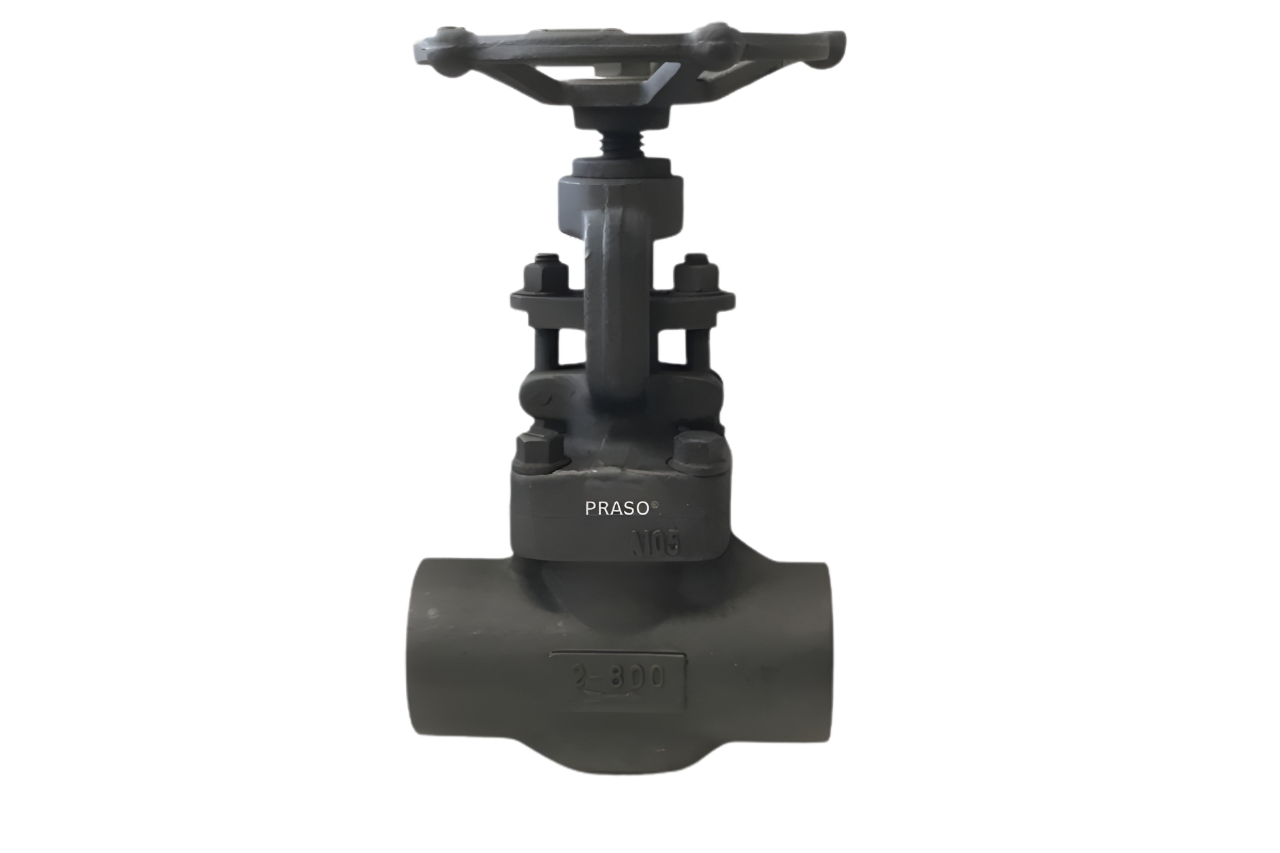

Forged Steel Gate Valve Screwed End

Body: Forged Carbon Steel / Alloy Steel / Stainless Steel
Trims: 13 CR / 18 CR 8 NI / 18 CR 10 NI – 2 MO
MFG Std.: API 602 / BS 5352
INSP & Test STD: API 598 / BS 6755
End Connection: Screwed To BSP / NPT / Socket Weld
Size Range: 15 MM To 50 MM

Forged Steel Gate Valve Flanged End

Body: Forged Stainless Steel / Carbon Steel
Trims: 13 CR / 18 CR 8 NI / 18 CR 10 NI – 2 MO
MFG Std.: API 602 / BS 5352
INSP & Test STD: API 598 / BS 6755
End Connection: Flanged To ASME B 16.5 RF (150#) (300#)
Size Range: 15 MM To 50 MM

Cast Iron Gate Valve Flanged End

Body: IS 210 GR FG 200 / 220 (CAST IRON)
Trims: 13 CR / 18 CR 8 NI
End Connection: Flanged To ASME B 16.1 FF (125#)
MFG Std.: API 600/ BS 5150
INSP & Test STD: API 598 / BS 6755

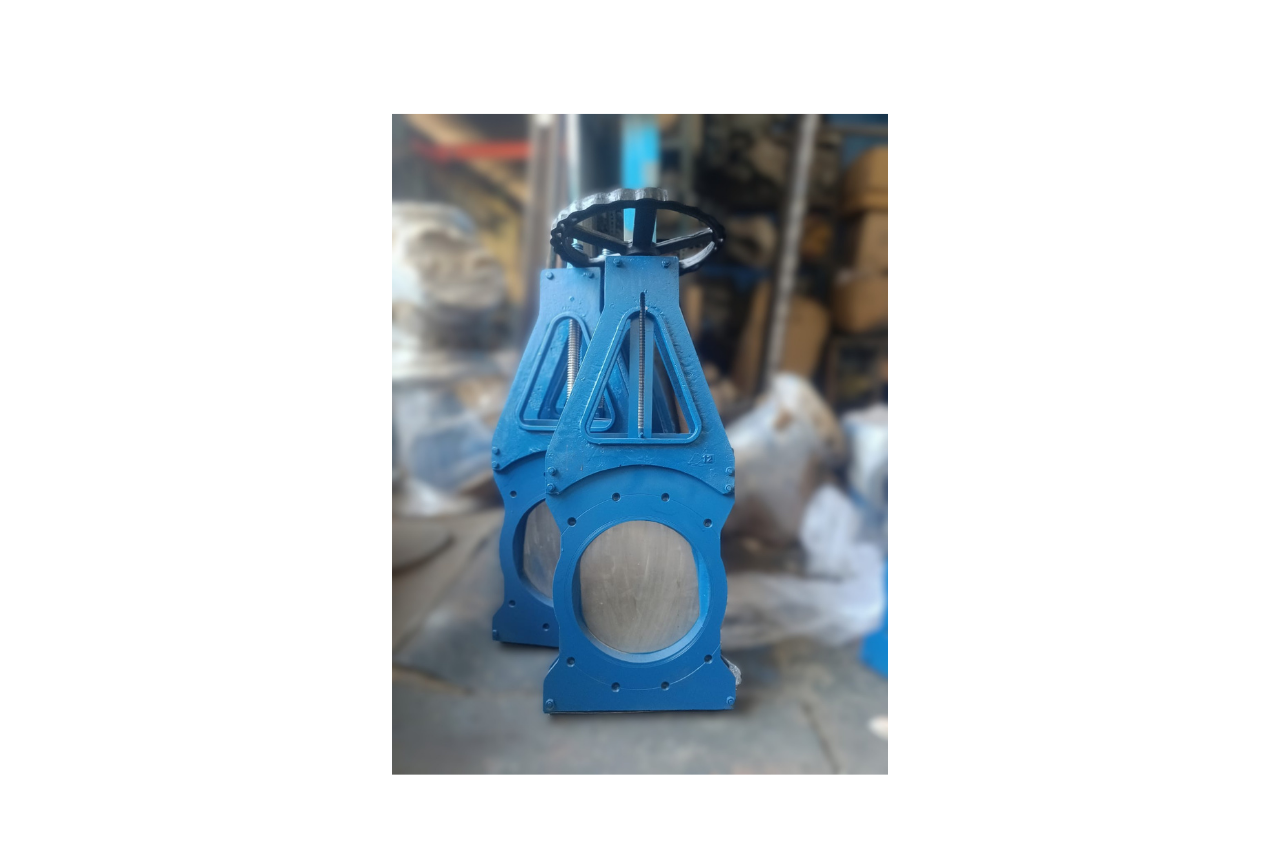

Knife Edge Gate Valve

Body: Cast Iron /WCB / CF8 / CF8M / CF3M
Knife Plate: CF8 / CF8M / CF3M / AISI 304
Seat: Metal To Metal / Nitrile
Packing: PTFE / Metal To Metal
End Connections: Flanged / Lugged To ANSI B 16.5 RF (150#)
Body Pressure: 10 Kg/Cm2
Seat Pressure: 7 Kg/Cm2 (Nitrile)
Application: Slurries / Heavy oils / Non-flammable viscous fluids / Wastewater
Size Range: 40 MM To 750 MM

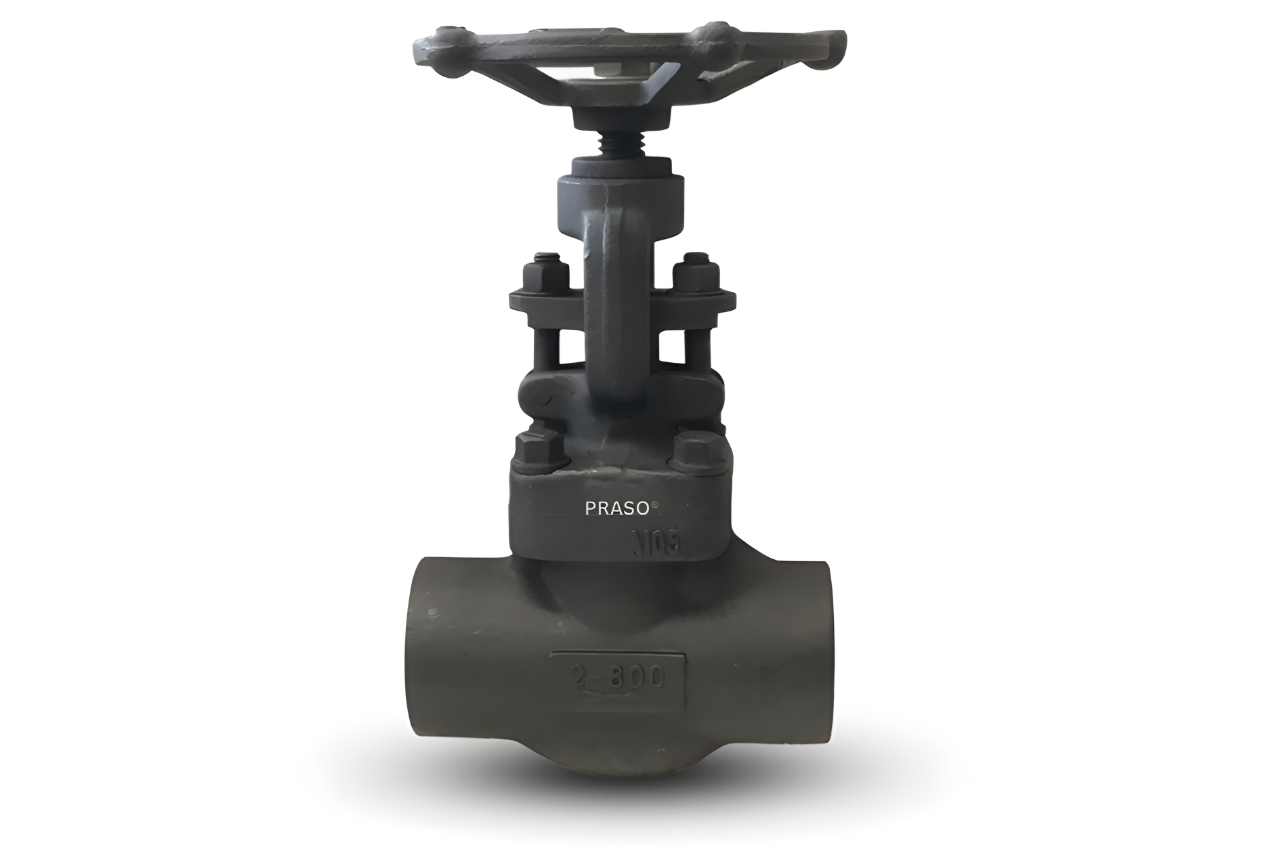

Forged Steel Globe Valve Screwed End

Body: Forged Carbon Steel / Alloy Steel / Stainless Steel
Trims: 13 CR / 18 CR 8 NI / 18 CR 10 NI – 2 MO
End Connection: Screwed To BSP / NPT / Socket Weld
MFG Std.: API 602 / BS 5352
INSP & Test STD: API 598 / BS 6755

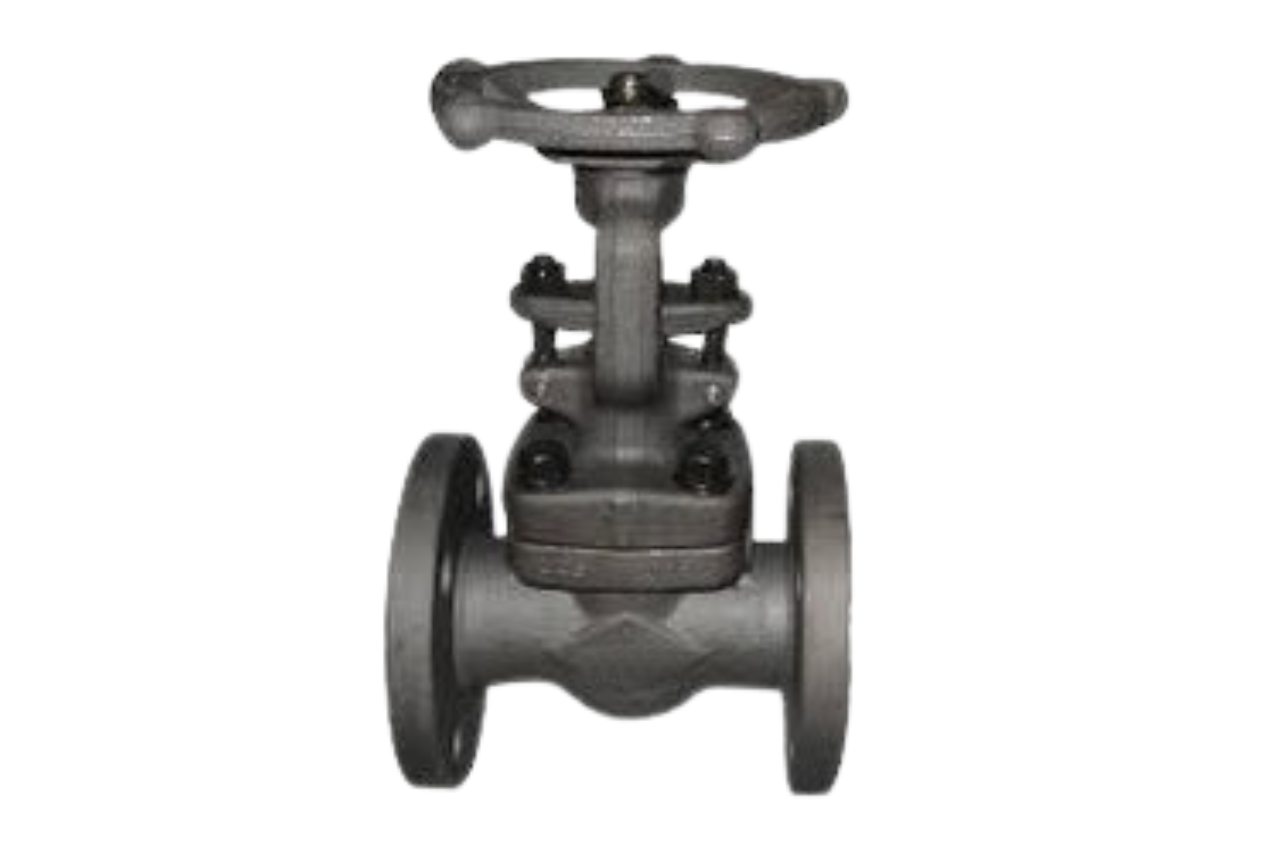

Forged Steel Globe Valve Flanged End

Body: Forged Carbon Steel / Stainless Steel
Trims: 13 CR / 18 CR 8 NI / 18 CR 10 NI – 2 MO
MFG Std.: API 602 / BS 5352
INSP & Test STD: API 598 / BS 6755
End Connection: Flanged To ASME B 16.5 RF (150#) (300#)
Size Range: 15 MM To 50 MM

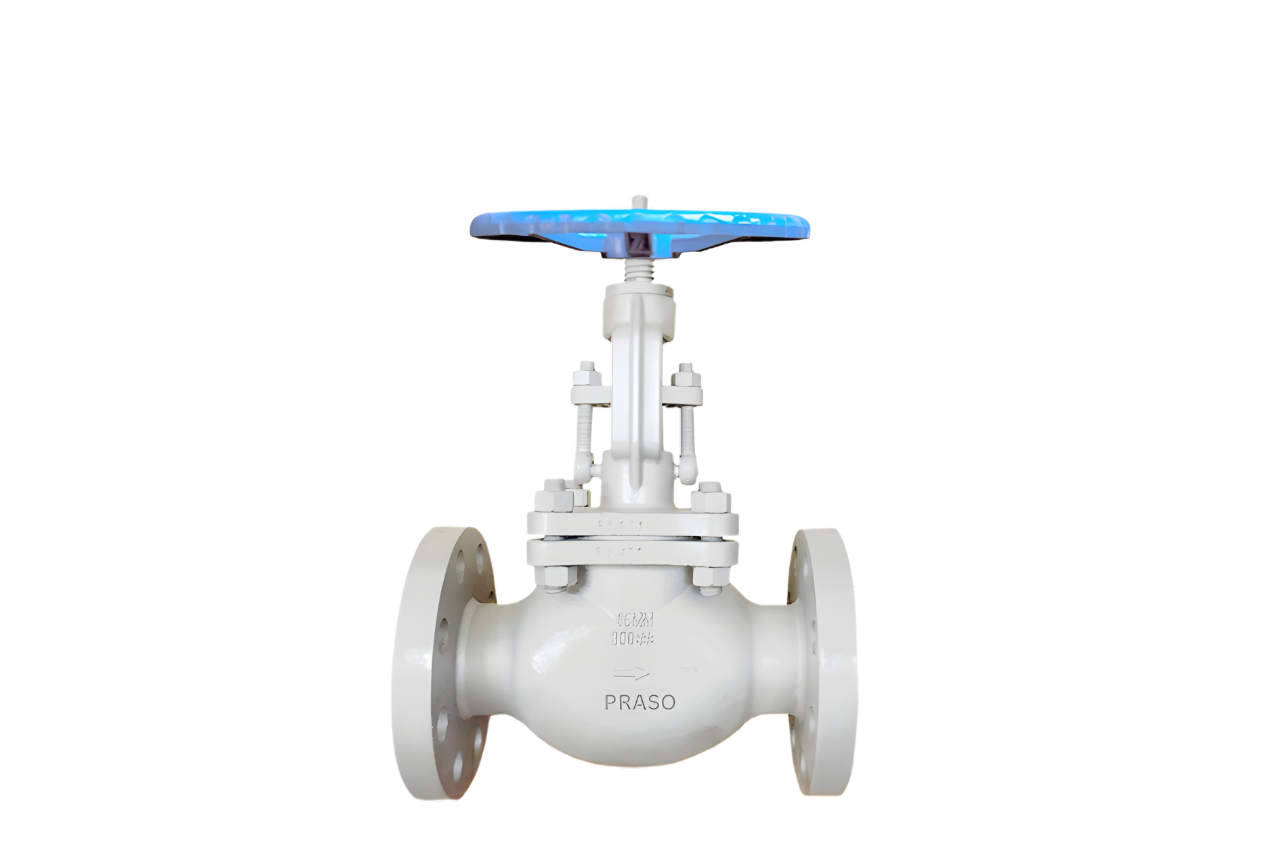

Cast Iron Globe Valve Flange End Din

Body: IS 210 Gr. FG 200/220 Cast Iron
Trims: 13 Cr / 18 Cr 8 Ni
Bonnet: Cast Iron
Disc: SS-304 / SS-316
Nuts: AISI 304
Hand Wheel: Cast Iron
Application: Water / Chemical
End Connection: Flanged End
Class (#): 150# / 300# / 600# / 900# / 1500# / 2500#
Body Pressure: 379 Kg/Cm2
Seat Pressure: 281 Kg/Cm2
Size Range: 15 MM To 250 MM

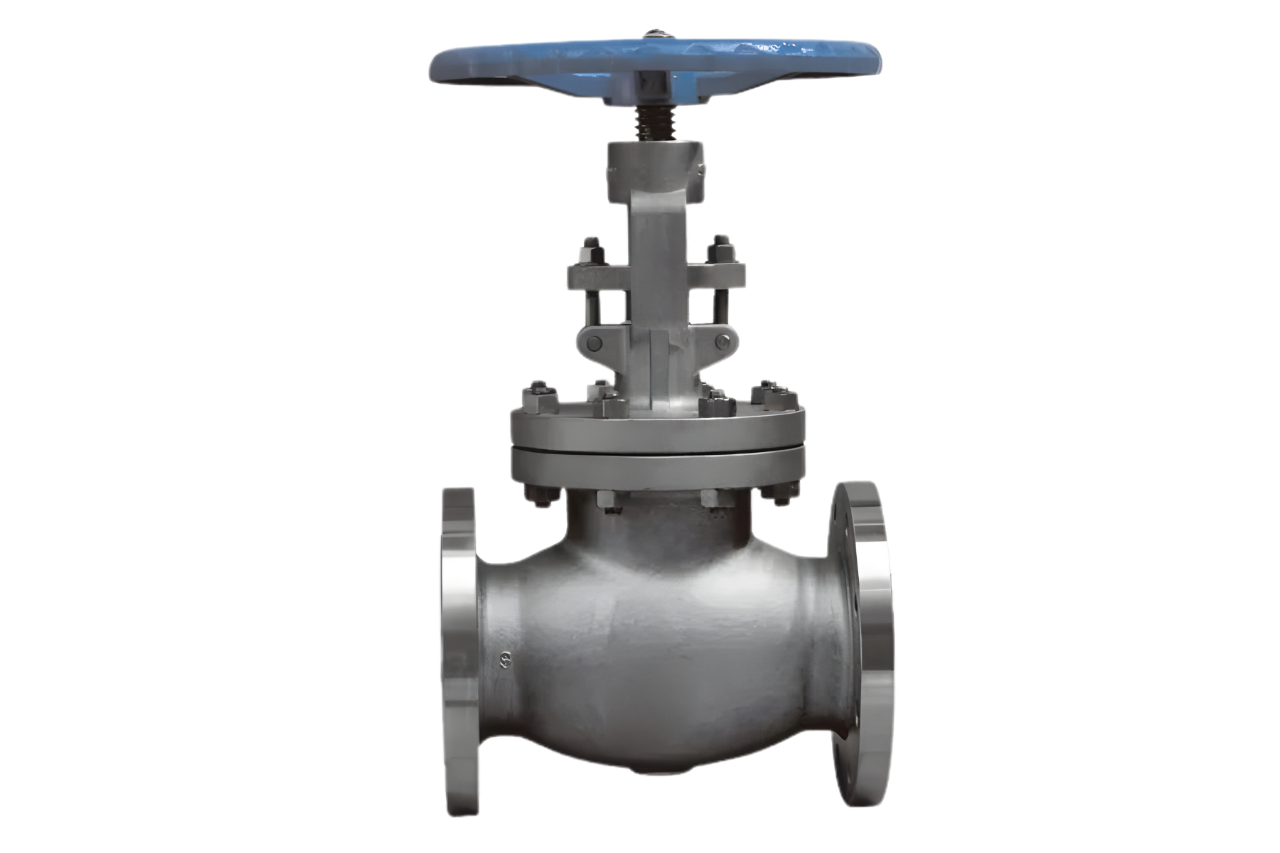

Cast Steel Globe Valve Flanged End

Body: Cast Steel (WCB) / ASTM A 351 Gr CF8 / CF8M
Trims: 13 Cr / 18 Cr 8 Ni
Bonnet: ASTM A 216 WCB
Disc: SS-304 / SS-316
Nuts: AISI 304
Hand Wheel: Cast Iron
End Connection: Socket Weld / Flanged End
Class (#): 150# / 300# / 600# / 900# / 1500#
Body Pressure: 379 Kg/Cm2
Seat Pressure: 281 Kg/Cm2
Application: Water / Chemical
Size Range: 15 MM To 1000 MM

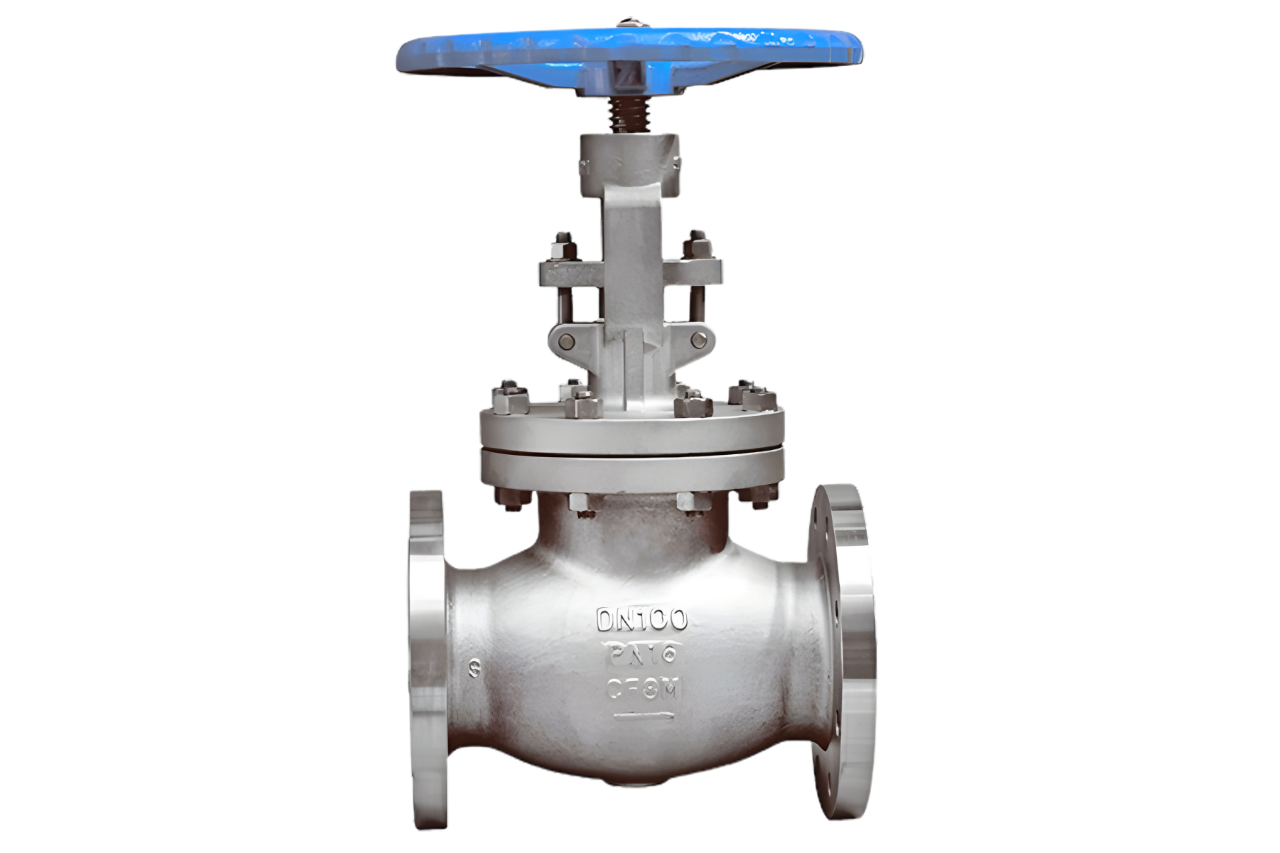

Stainless Steel Globe Valve Flanged End

Body: ASTM A 351 Gr CF8 (SS-304) / CF8M / CF3M
Trims: 18 Cr 8 Ni / 18 Cr 10 Ni – 2 MO / CF3M
Bonnet: SS-304 / SS-316
Disc: SS-304 / SS-316
Nuts: AISI 304
Hand Wheel: Cast Iron
Application: Water / Chemical / Steam
End Connection: Socket Weld / Flanged End
Body Pressure: 633 Kg/Cm2
Seat Pressure: 464 Kg/Cm2
Class (#): 150# / 300# / 600# / 900# / 1500# / 2500#
Size Range: 15 MM To 1000 MM

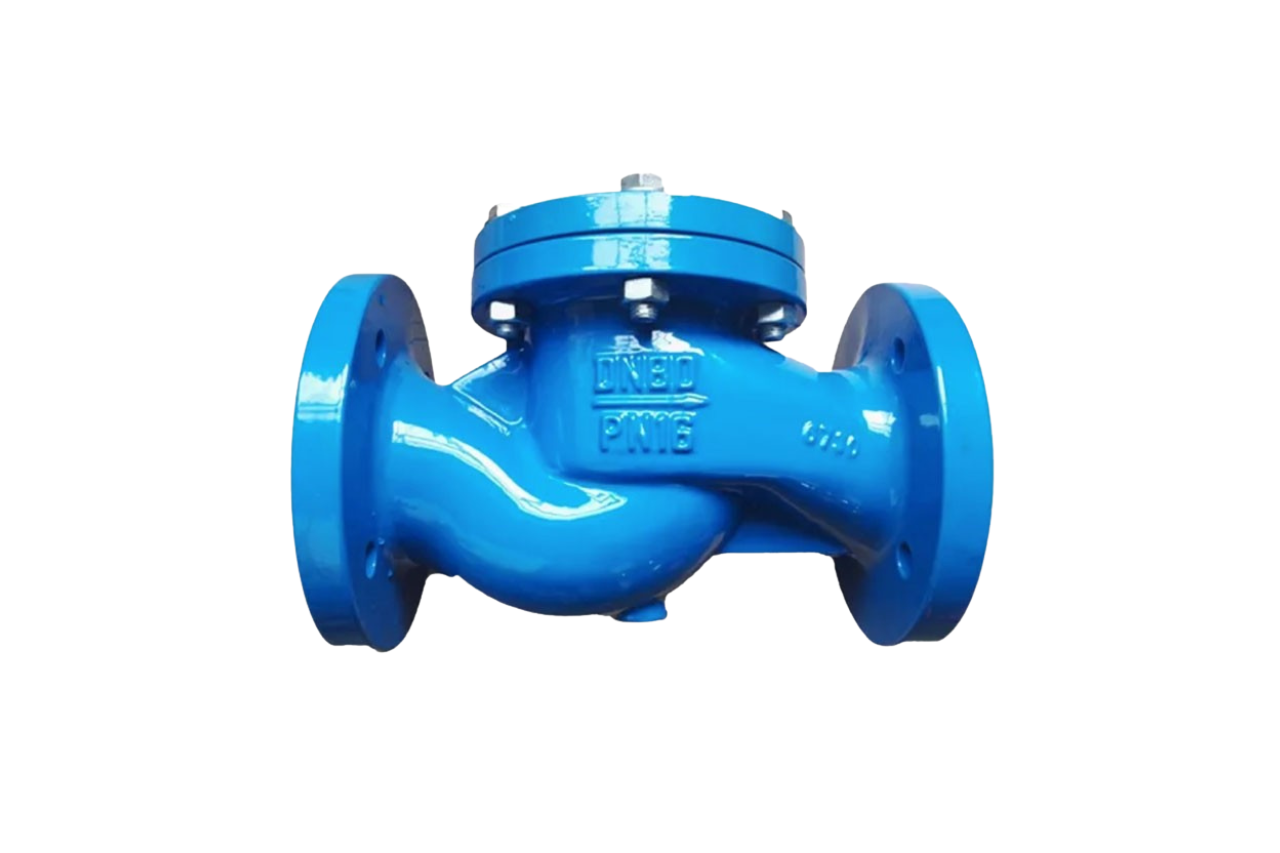

Lift Type Check Valve

Body: CAST IRON /ASTM A 351 Gr CF8 / CF8M / CF3M / Cast Steel (WCB)
Trims: 13 Cr / 18 Cr 8 Ni / 18 Cr 10 Ni – 2 MO
End Connection: Flanged End
Pressure: Body : 60 Kg/Cm2 / 15 Kg/Cm2 | Seat : 40 Kg/Cm2 / 10 Kg/Cm2
Applications: Water / Oil
Size Range: 15 MM To 400 MM

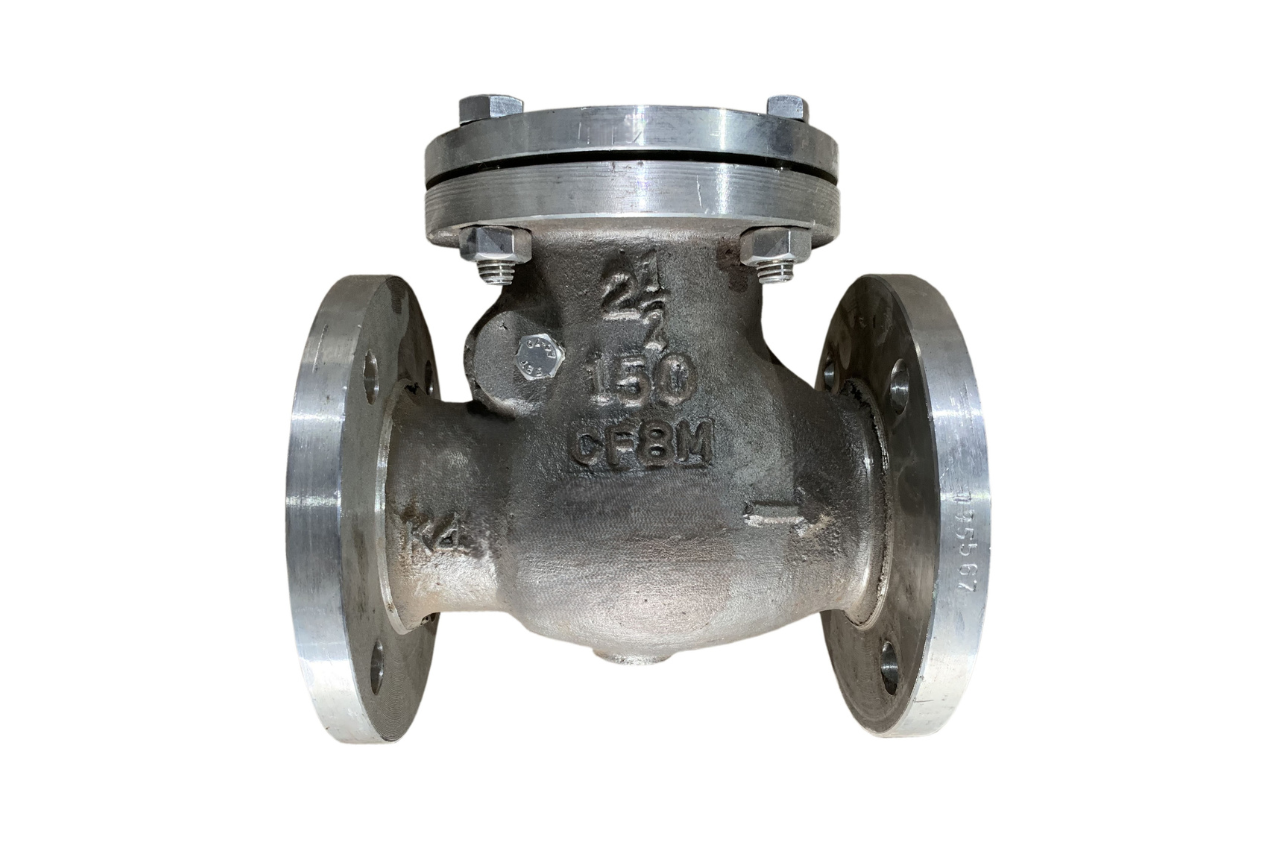

Swing Type Check Valve

Body: Cast Iron / Cast Steel (WCB) / CF8 (SS-304) / CF8M (SS-316)
Trims: 13Cr / 18 Cr 8 Ni / 18 Cr 10 Ni – 2 MO / CF8M / CF3M
End Connection: Flanged End
Class (#): 150# / 300# / 600#
Pressure: Body : 153 Kg/Cm2 | Seat : 112 Kg/Cm2
Applications: Water / Oil
Size Range: 25 MM To 1200 MM

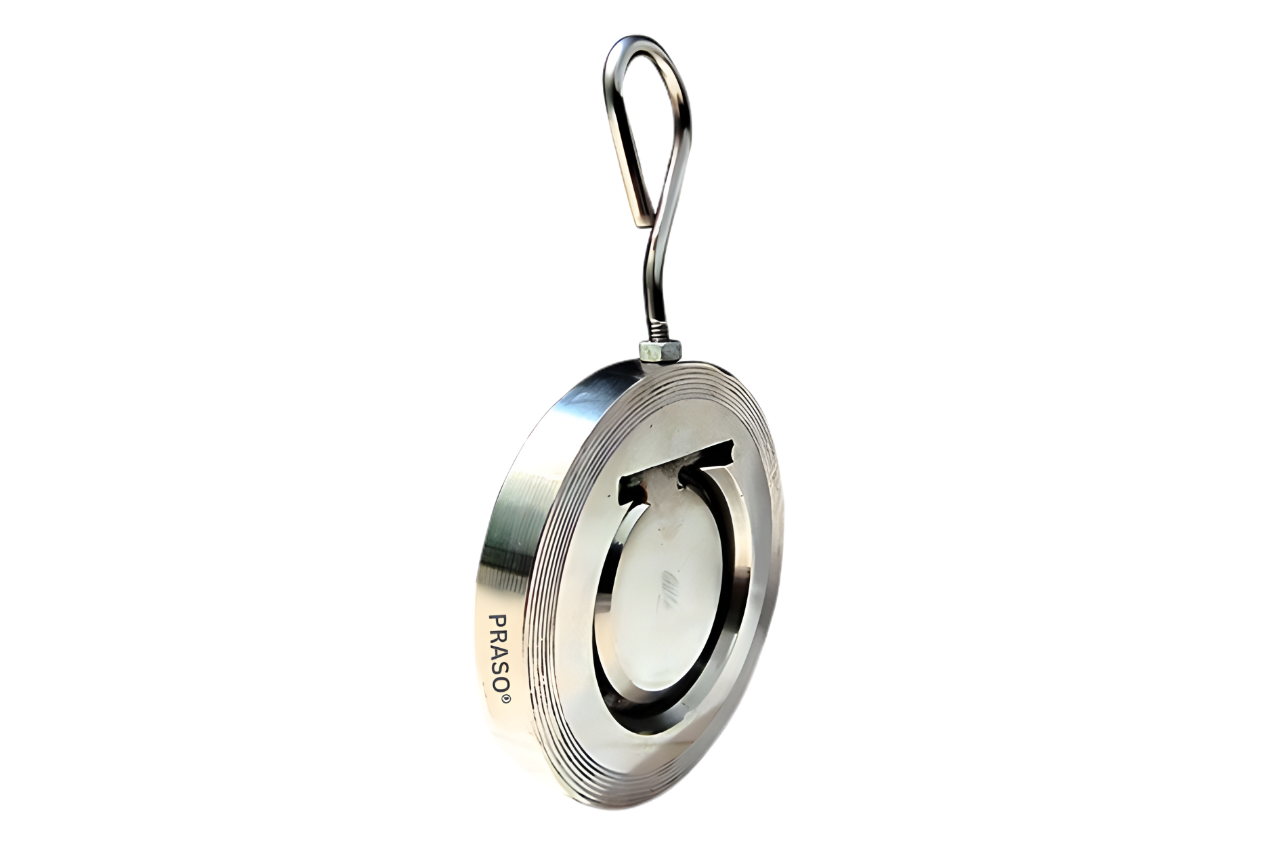

Wafer Type Check Valve

Body: Cast Iron / CF8 (SS-304) / CF8M (SS-316) / CF3M / EN8 – MS
Pin: 18 Cr 8 Ni TO AISI 304 / 13 Cr To AISI 410 / AISI 304
Rings: Nitrile / EPDM / PTFE
End Connection: Wafer Type
Pressure: Body : 225Psig (16Kg/Cm2) Seat : 165 Psig (11.5Kg/Cm2)
Application: Water / Oil
Size Range: 25 MM TO 600MM

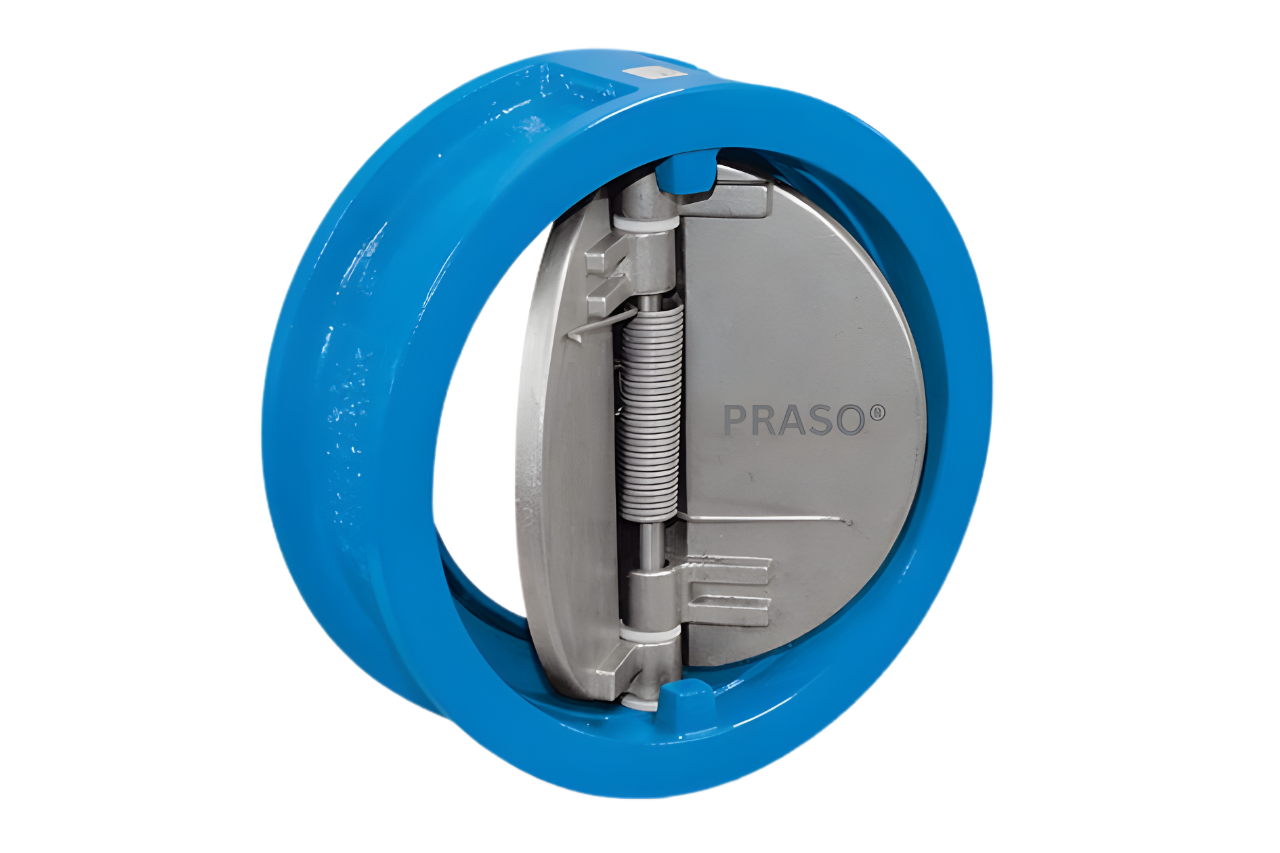

Dual Plate Wafer Type Check Valve

Body: Cast Iron / Cast Steel (WCB) / CF8 (SS-304) / CF8M (SS-316)
c: WCB / S.G. Iron / SS-304 / SS-316
Hinge & Stop Pin: AISI 304 / AISI 316
Spring: Stainless Steel
Seat: Nitrile
End Connection: Wafer Type To ANSI B 16.5 (150#) / ASME 16.1 (125#)
Body Pressure: 30 Kg/Cm2 / 16 Kg/Cm2
Seat Pressure: 21 Kg/Cm2 / 11.5 Kg/Cm2
Size Range: 50 MM TO 600 MM

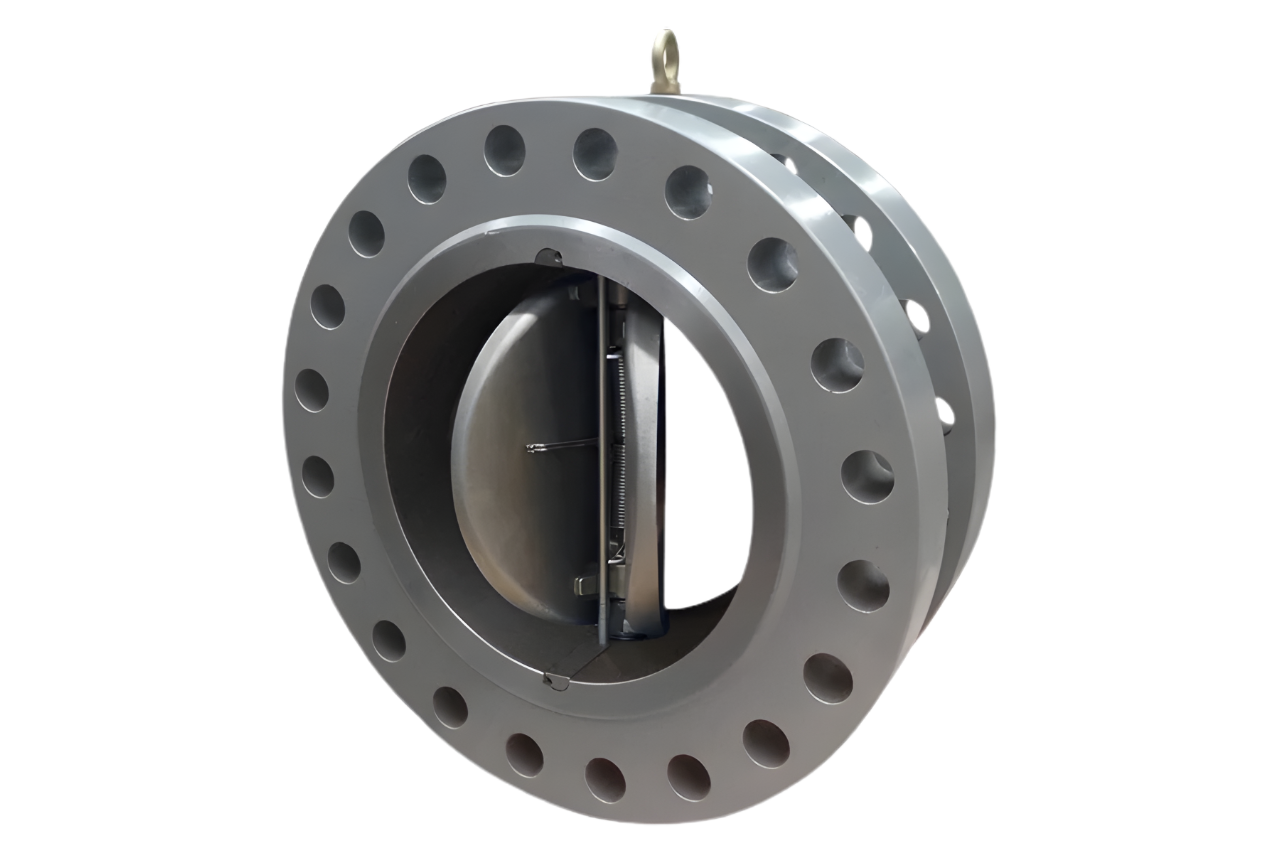

Dual Plate Flanged Type Check Valve

Body: Cast Iron / WCB
Disc: WCB / S.G Iron / SS-304 / SS 316
Hinge & Stop Pin: AISI 304 / AISI 316
Springs: Stainless Steel
Seat: Nitrile
End Connection: Flange End To ANSI B 16.5 (150#) (125#)
Body Pressure: 16 Kg/Cm2 / 32 Kg/Cm2
Seat Pressure: 11.5 Kg/Cm2 / 22 Kg/Cm2
Application: Water
Size Range: 50 MM TO 1000 MM

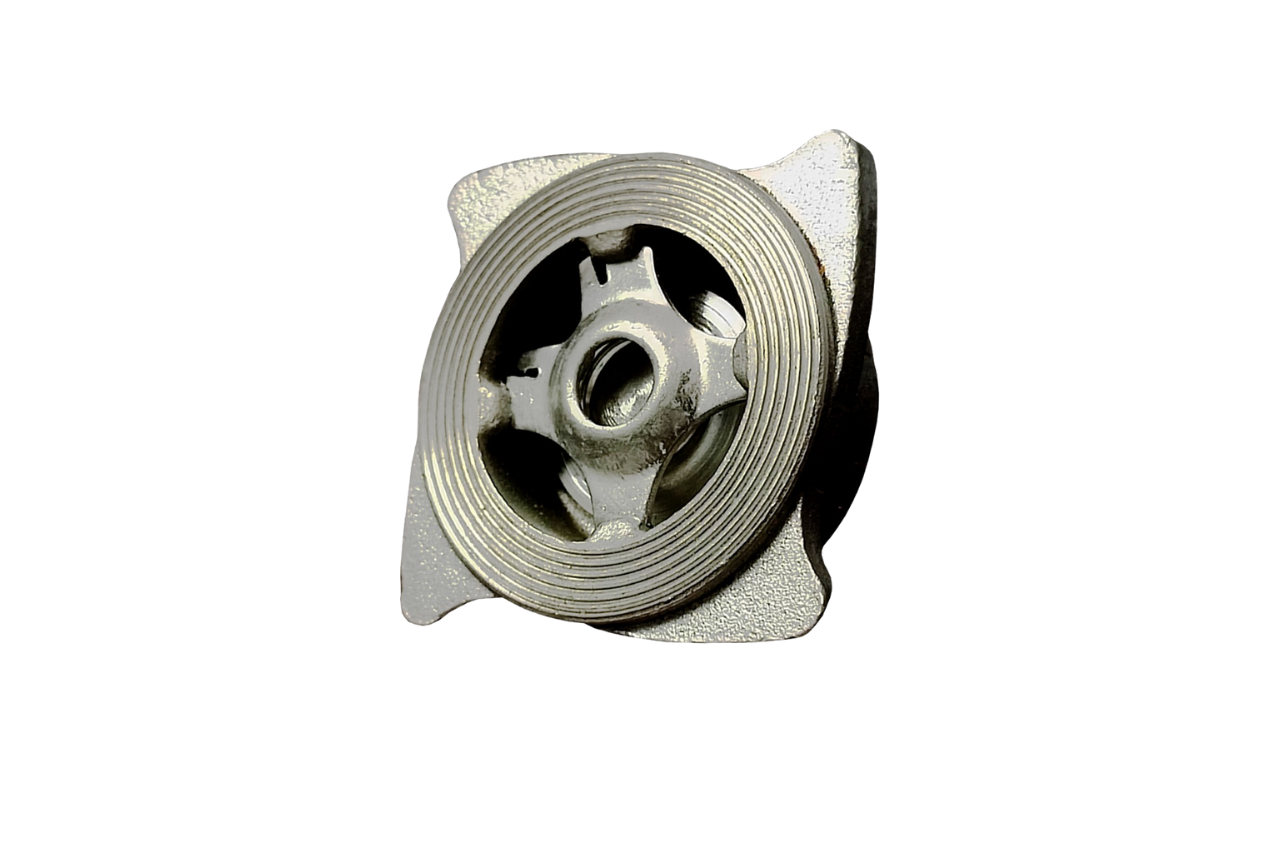

Non Slam Disc Check Valve

Body: CF8 (SS-304) / CF8M (SS-316)
Disc: WCB / SS 304 / SS 316
Spring: Stainless Steel
pring Retainer: AISI 304 / AISI 316
Seat: Metal / EPDM / Nitrile / PTFE
End Connection: Wafer Type For 15 to 250 MM
HYD-Test Pressure: BODY – 450 Psig (32 Kg/Cm2) SEAT – 315 Psig (22 Kg/Cm2)
Size Range: 15 MM To 200 MM

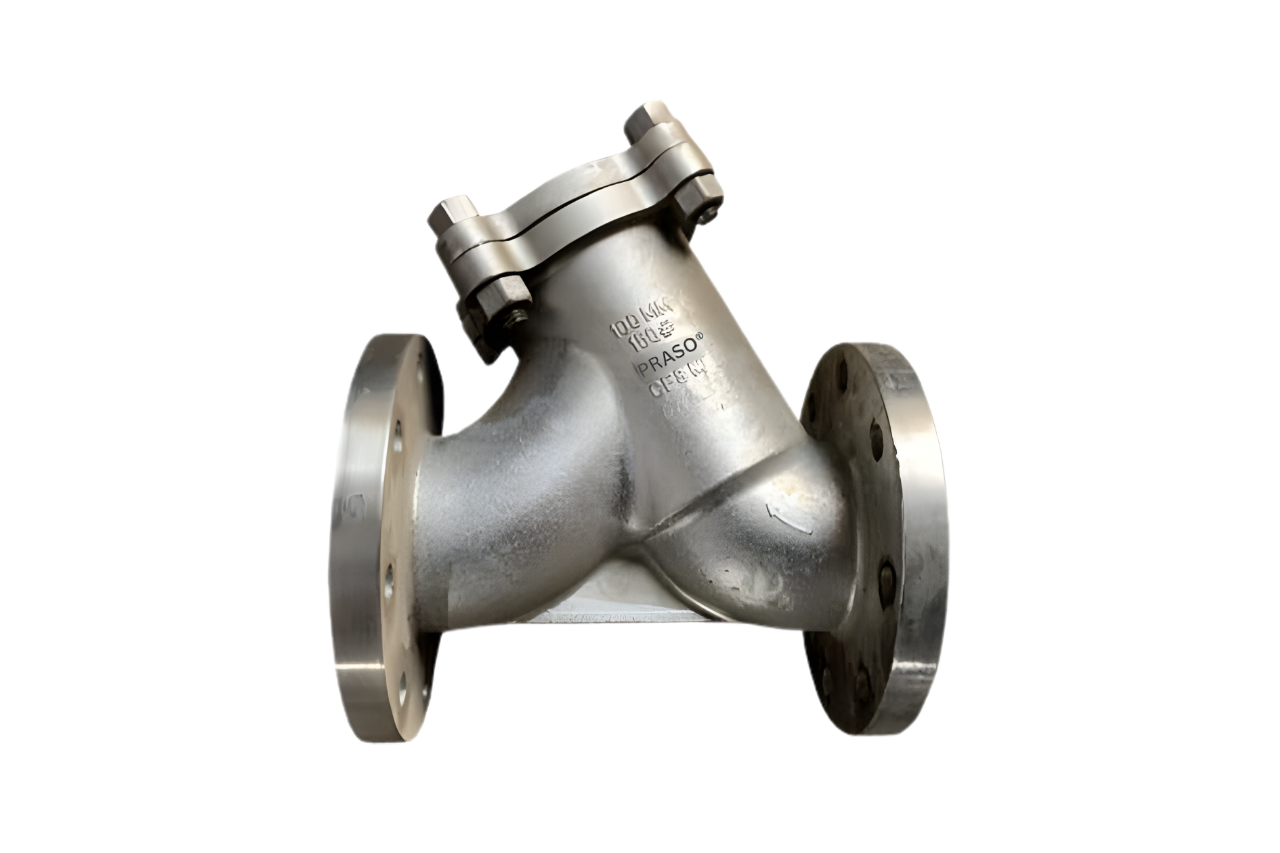

Y Type Strainer Flanged End

Body: ASTM A 351 Gr CF8 / CF8M / WCB / CAST IRON
Screen: SS-304 / SS-316
End Connection: Flanged End / Screwed End / Socket-weld End
Class (#): 150# / 300# / 600#
Pressure: 60 Kg/Cm2
Application: Water / Oil / Stem
Size Range: 15 MM To 600 MM

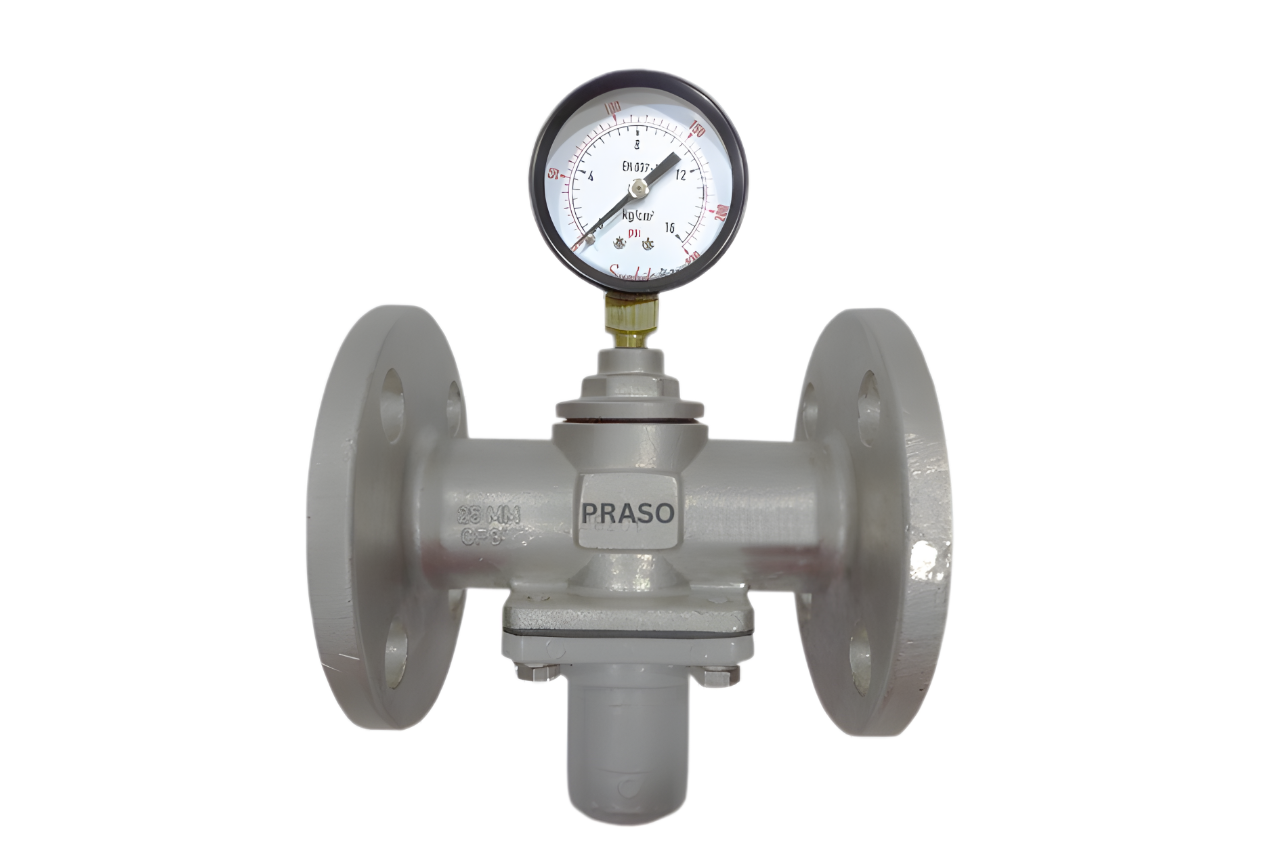

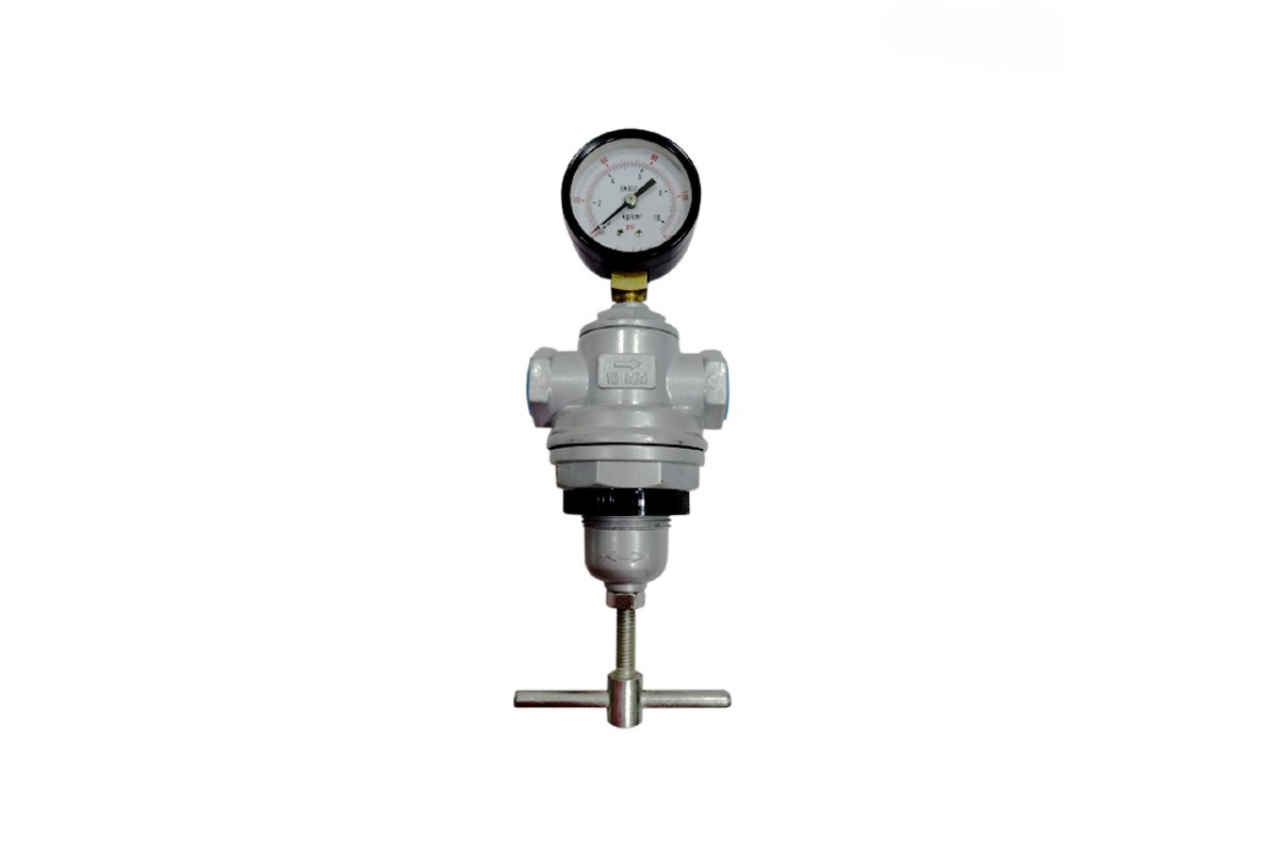

Direct Activated Pressure Reducing Valve

Body: ASTM A 351 Gr CF8 / CF8M
Seat: Viton / Buna-N (Water)
Adjusting System: Stainless Steel
Spring: Stainless Steel
End Connections: Screwed TO BSP / BSPT / NPT & Flanged End To ASA 150#
Hyd- Test Pressure: 40 (Kg/Cm2)
Maximum Inlet Working Pressure: 40 Kg/Cm2 , 28 Kg/Cm2 , 18 Kg/Cm2
Pressure Adjusting Range: 1-6Kg/Cm2 , 4-10 Kg/Cm2 , 12-25 Kg/Cm2 , 20-35 Kg/Cm2
Size Range: 15 MM TO 150 MM
Application: Air / Oil / Gas & Steam

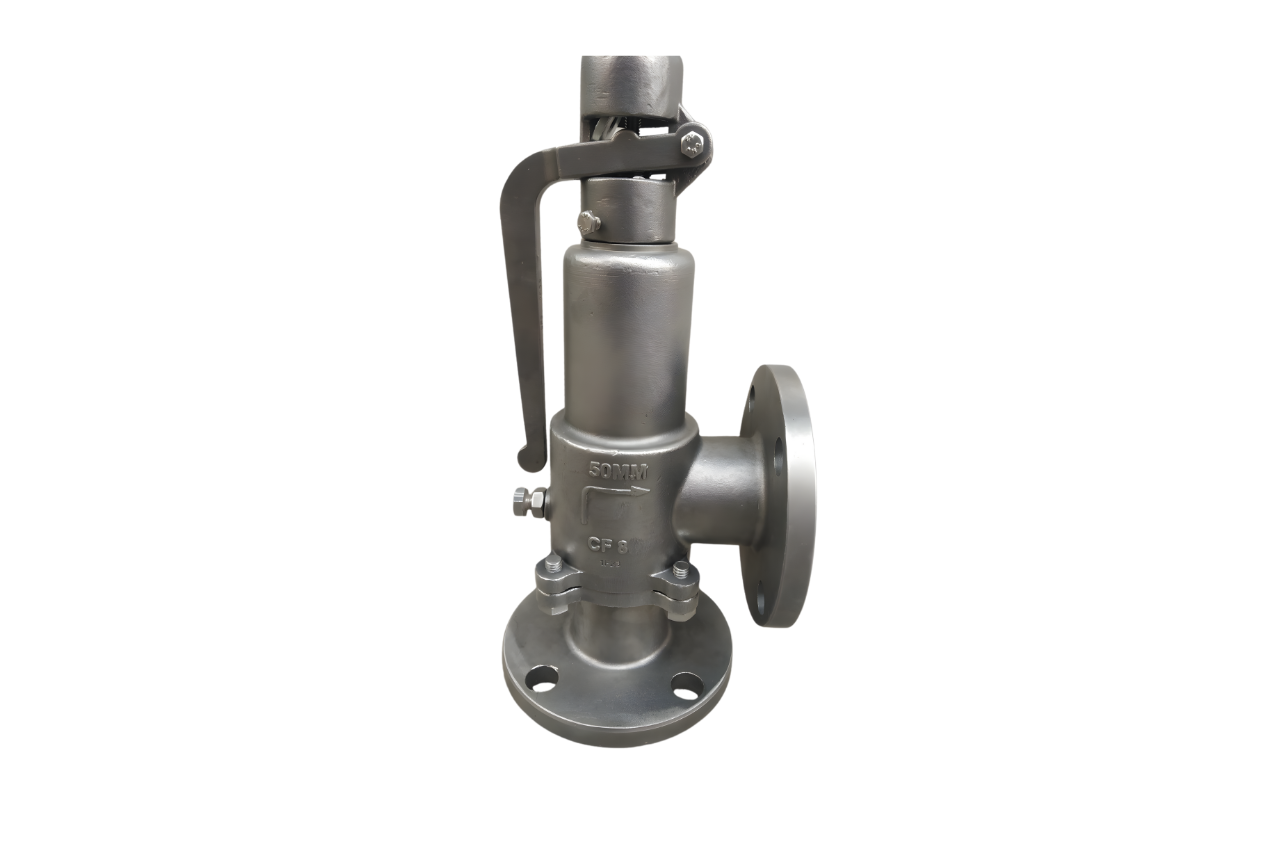

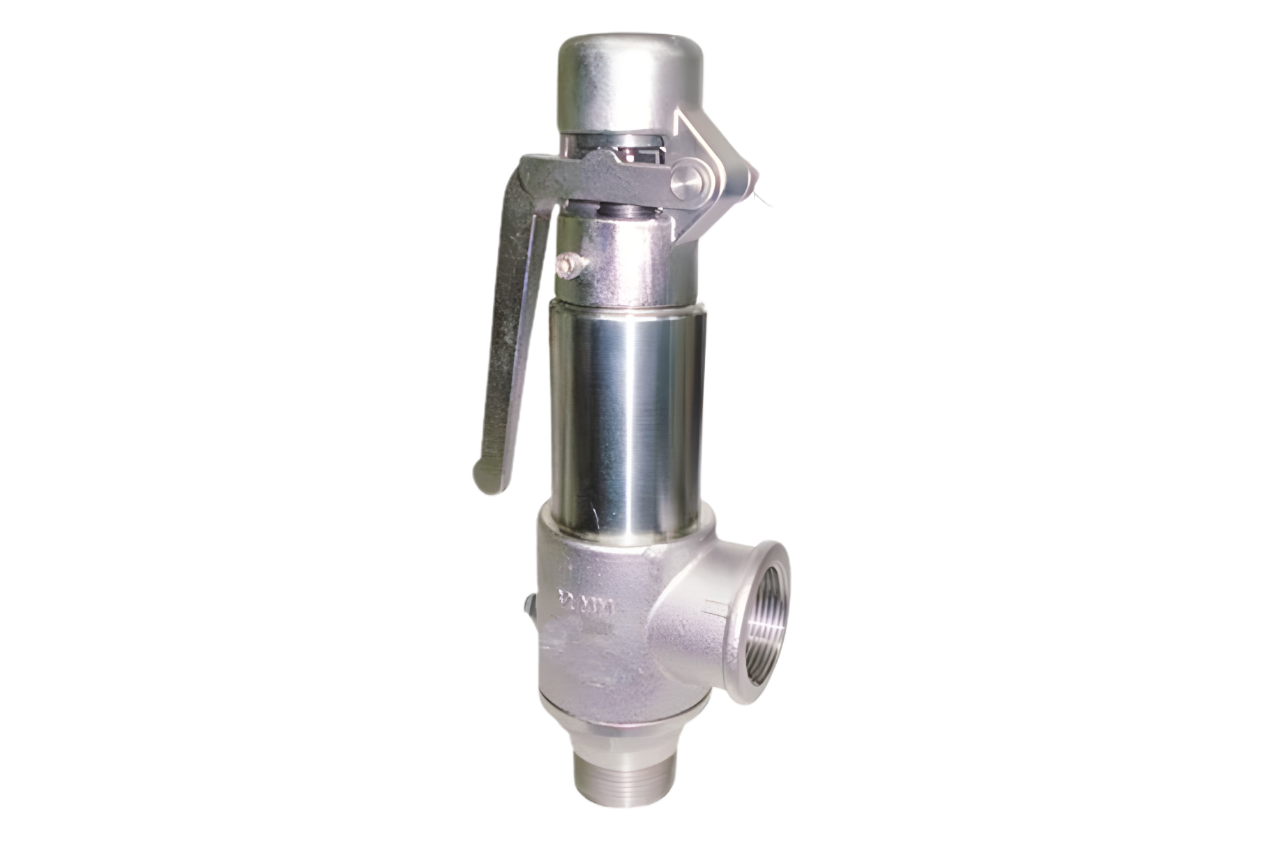

Pop Type Safety Valve Screwed End

Body: ASTM A 216 Gr WCB (Cast Steel)/ CF8 / CF8M
Bonnet: WCB / CF8 / CF8M
Seat: Metal To Metal
End Connection: Screwed End / Flanged End To ASME B 16.5
Pressure: 0 To 20 Bar (High pressure on request)
Temperature: Upto 300°C
Size Range: 15 MM TO 100 MM
Application: Air / Steam

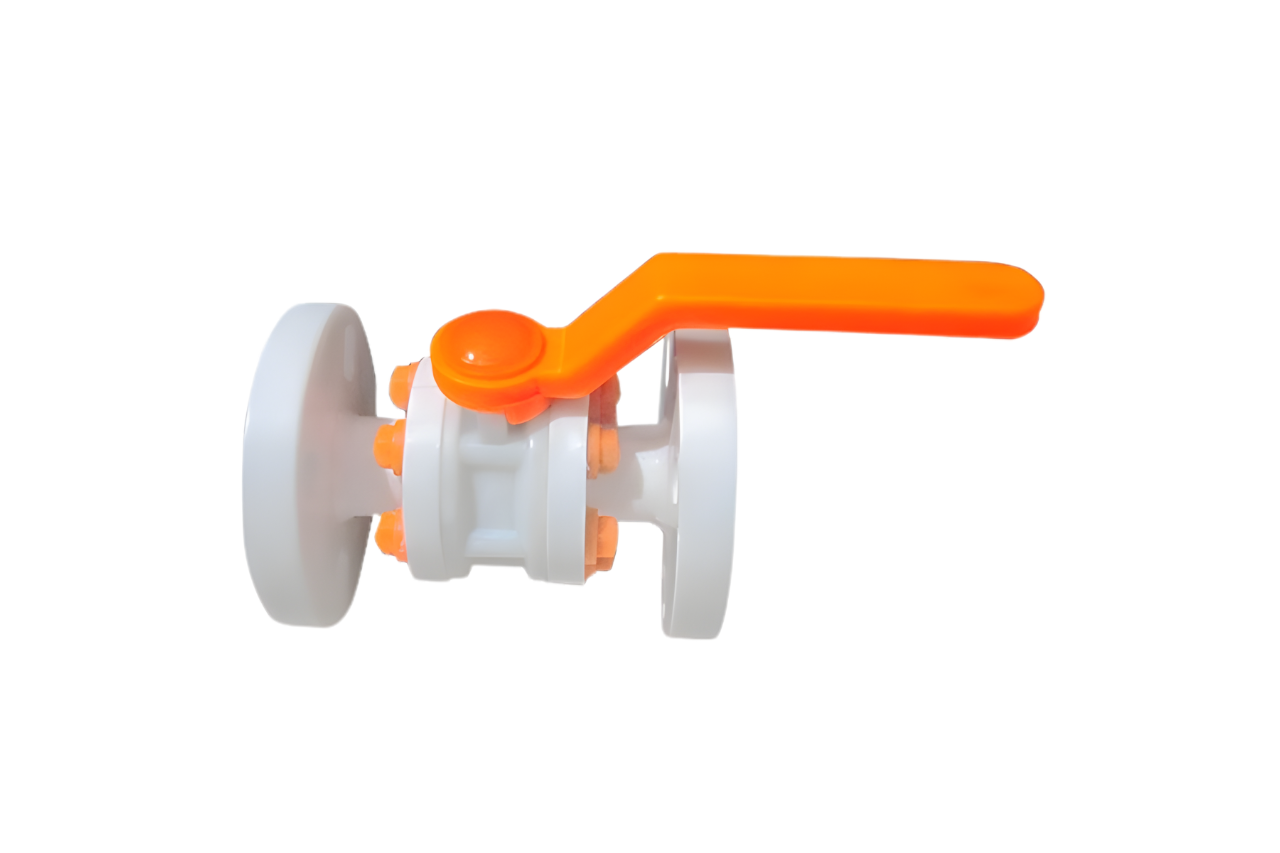

Polypropylene Ball Valve Flanged End 150#

Body: Polypropylene
Ball: Polypropylene
Seat: PTFE
End Connection: Flanged End To BS 10 TABLE E / TABLE F / ASME B16.5 (150#)
Body Pressure: 225 Psig {16Kg/cm2}
Seat Pressure: 165 Psig {11.5Kg/cm2}
Application: Water / Oil / Chemical
Size Range: 15 MM To 250 MM

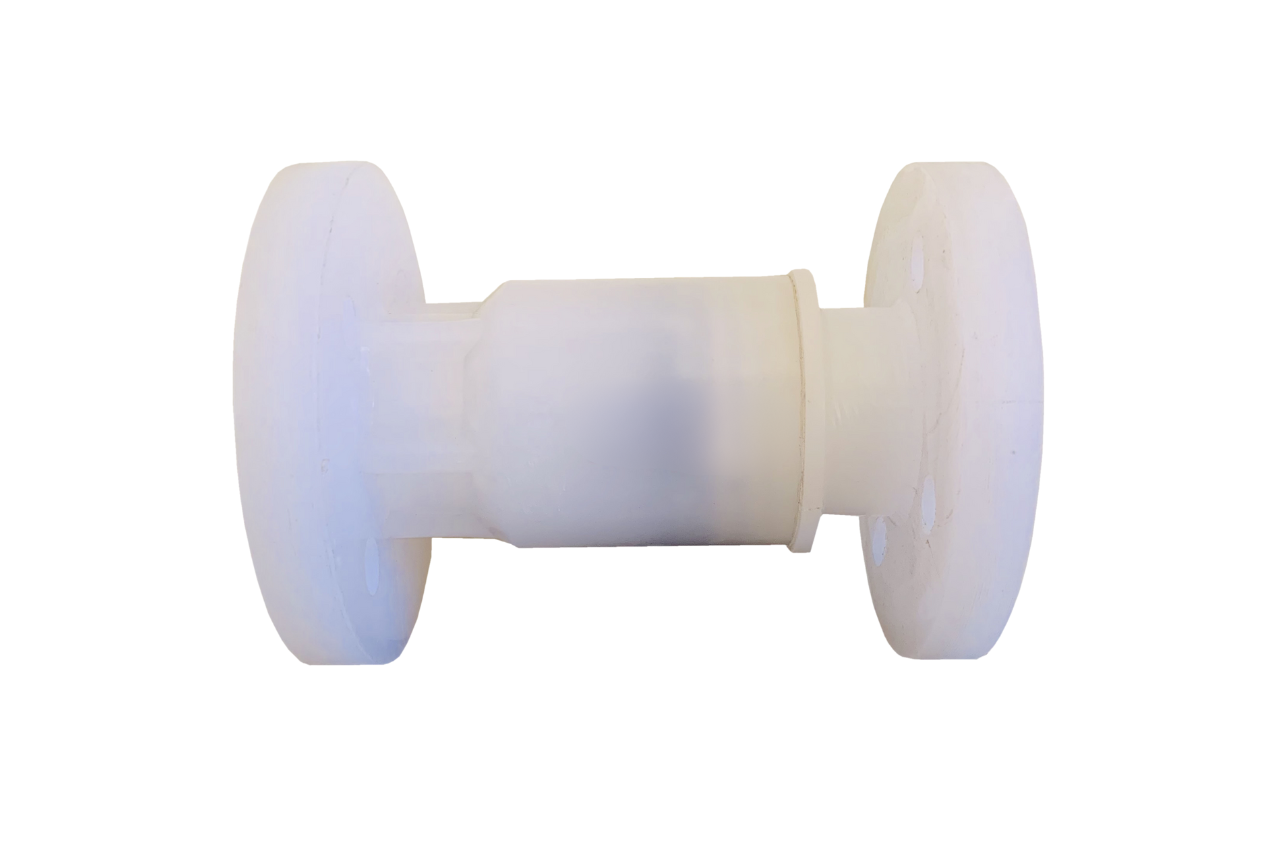

Polypropylene Non Return Valve (Check Valve)

Body: Actactic Polypropylene
Ball: Polypropylene
Stop Ring: Actactic Polypropylene
Seat: PTFE
Screen: Actactic Polypropylene
End Connection: Screwed End / Flanged End
Application: Water / Oil / Chemical
Size Range: 25 MM To 300 MM

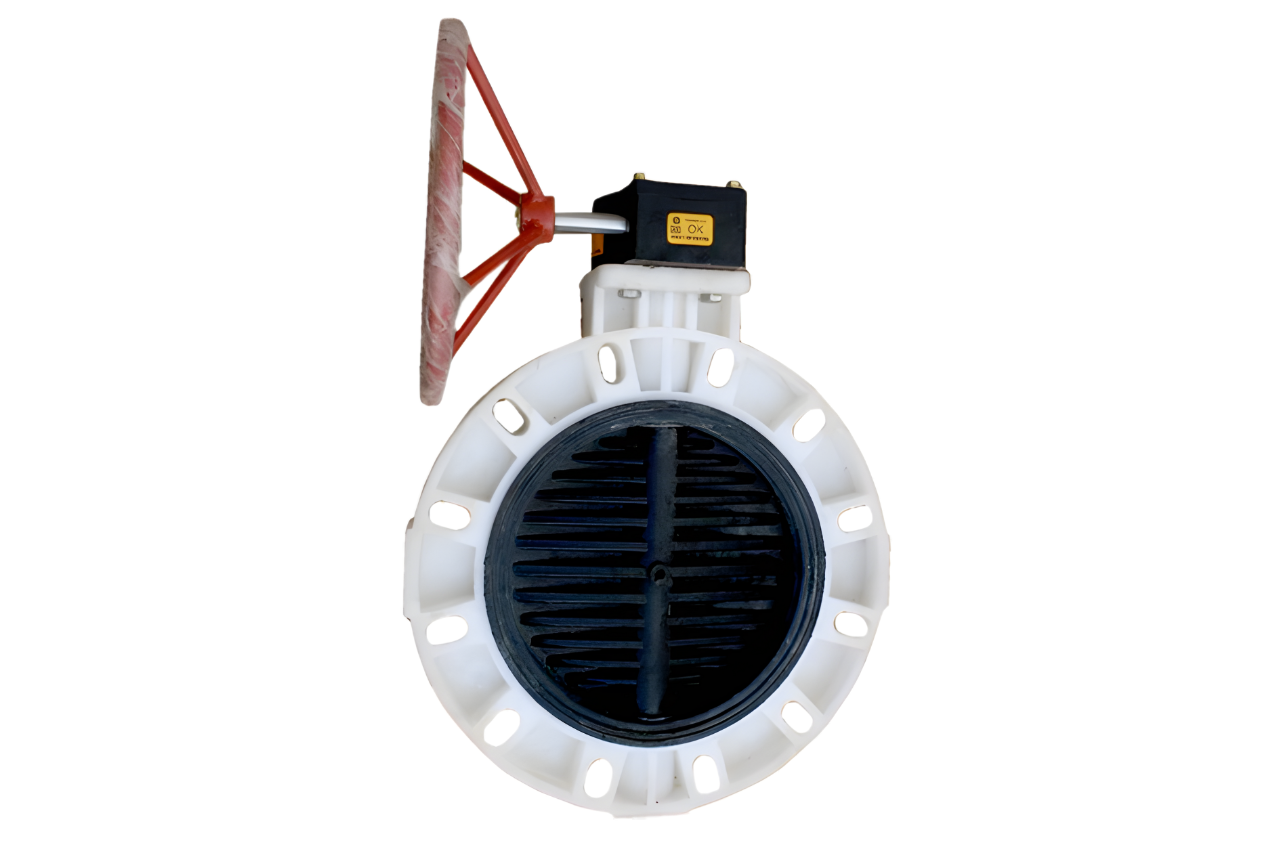

Polypropylene Butterfly Valve

Body: Polypropylene
Disc: Polypropylene
Seat: Nitrile
End Connections: Wafer Type
Pressure: 0 To 7 Kg/Cm2
Temperature: Upto 70º
Operation: Lever Operated
Application: Water / Chemical / Slurries

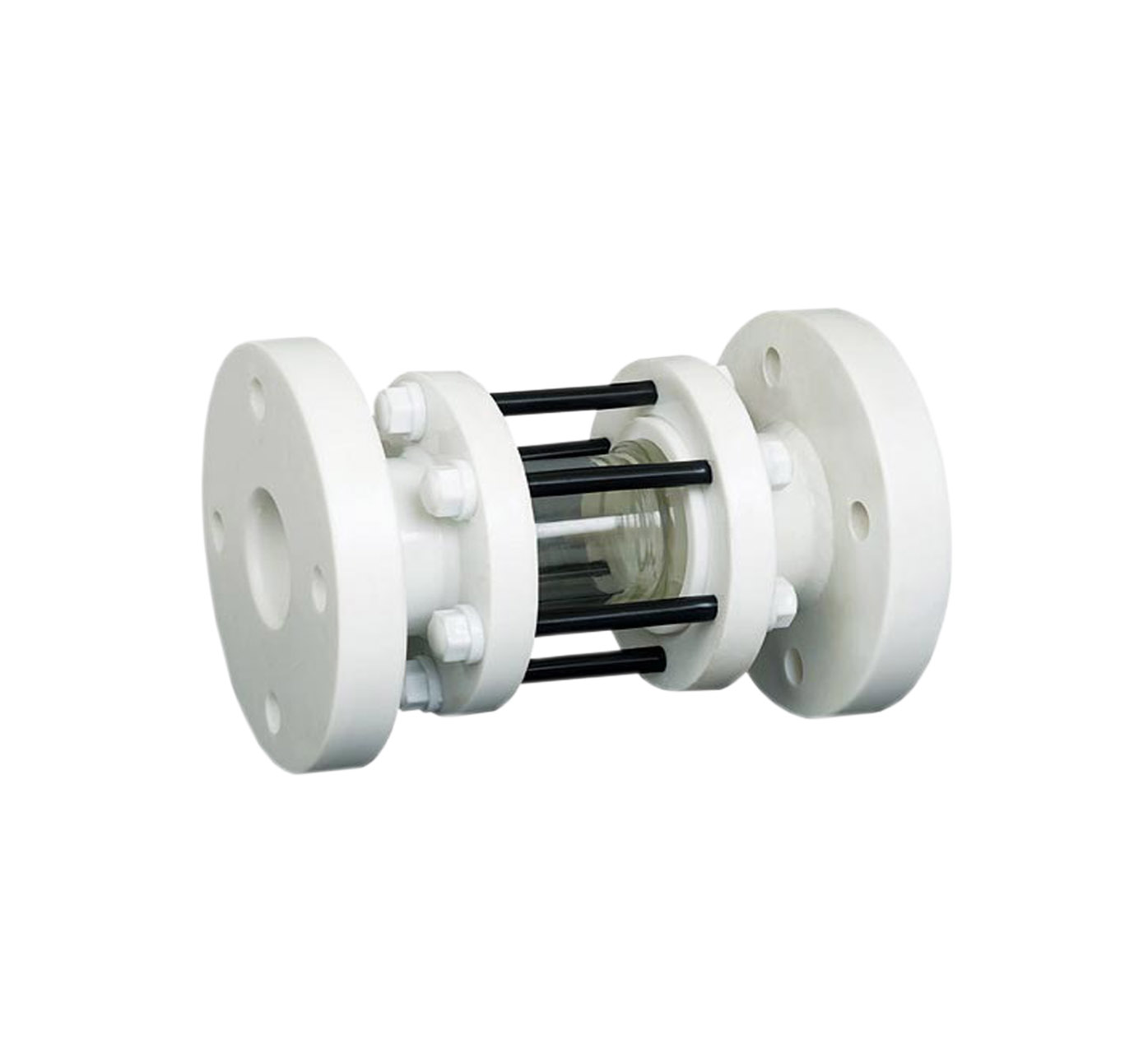

Polypropylene Sight Glass

Body: Polypropylene
Glass: Toughened Borosil Glass
Seat: PTFE
End Connection: Flanged End To ASME B 16.5 / Table E / F 150#
Applications: Water / Oil / Chemical

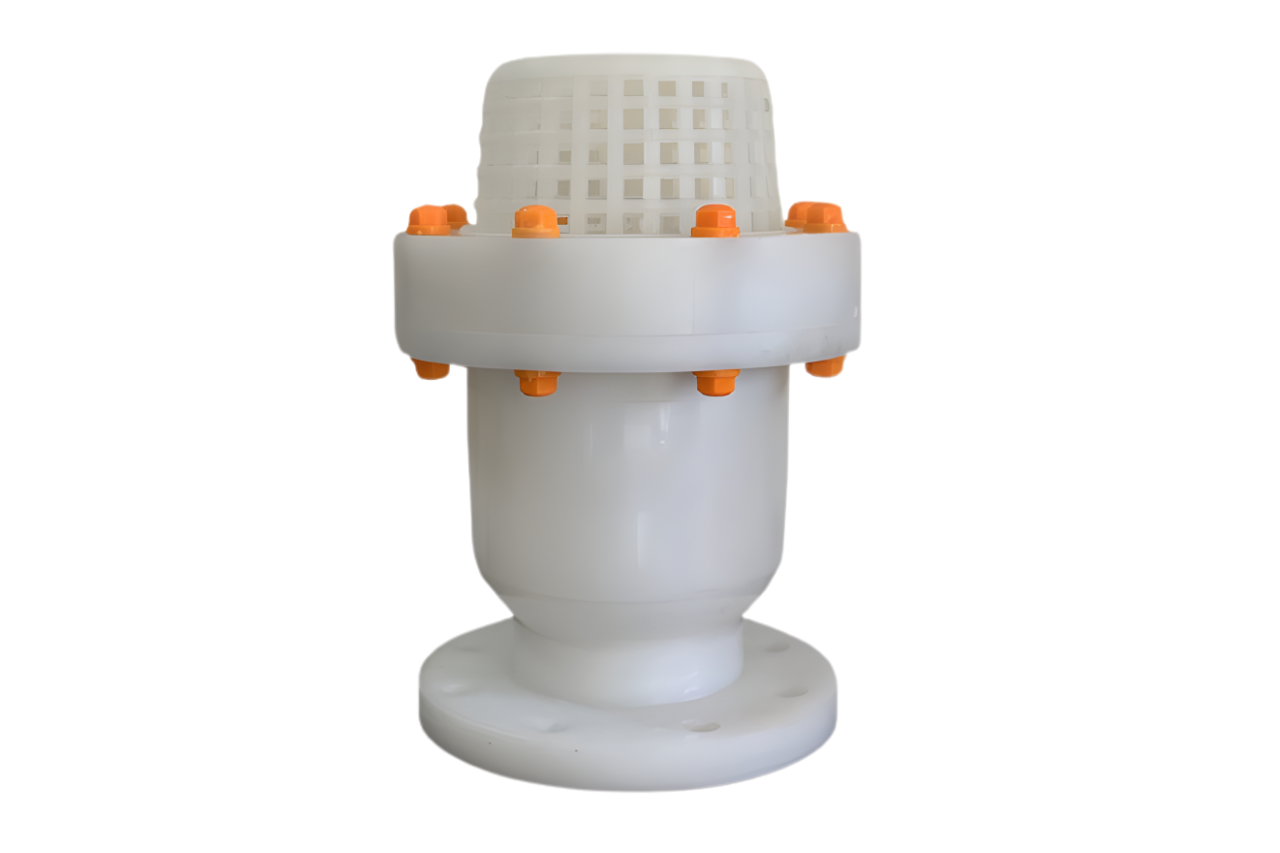

Polypropylene Foot Valve

Body: Actactic Polypropylene Copolymer
Ball: Polypropylene
Screen: Actactic Polypropylene
Seat: PTFE
Stop Ring: Actactic Polypropylene
End Connection: Screwed End To BSP F / Flanged End To ASME B 16.5

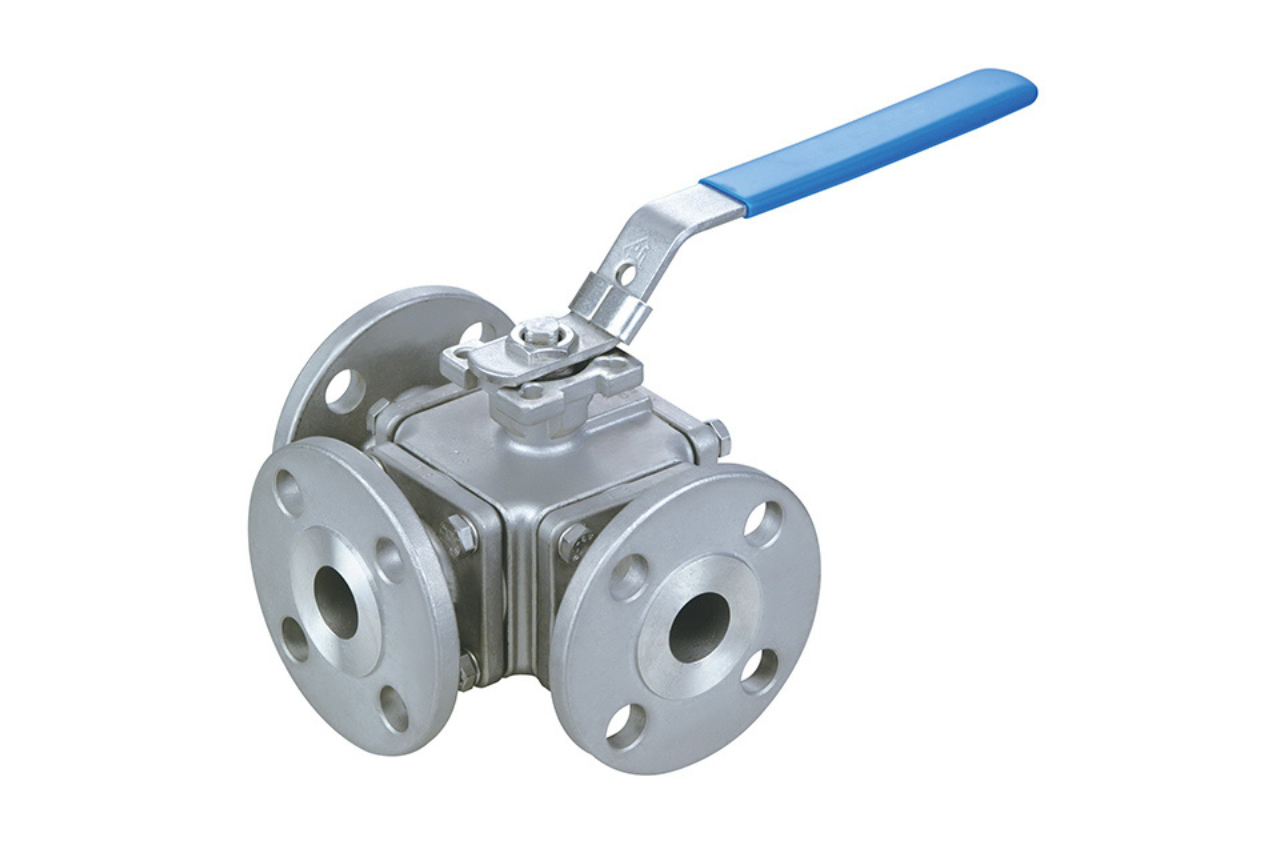

Three Way Ball Valve Flange End

Body: ASTM A 351 Gr. CF8 (SS 304) / CF8M (SS-316) / IS 210 Gr FG 200-Cast Iron / Cast Steel-WCB
Ball: WCB / SS 304 / SS 316
Seat: PTFE
Lever: MS Zinc Plated With PVC Sleeve
End Connections: Flanged End TO BS 10 TABLE F / ASME B 16.5
Body Pressure: 16 Kg/cm2
Seat Pressure: 11.5 Kg/cm2

Four Way Ball Valve

Body: ASTM A 216 Gr WCB / CF8 (SS-304) / CF8M (SS-316)
Ball: CF8 (SS-304) / CF8M (SS-316)
Seat: PTFE
Stem Pin & Gland: CF8
End Connections: Flanged End To ASME B 16.5 (150# , 300#)
Body Pressure: 10 Kg/Cm2
Temperature: Upto 180º

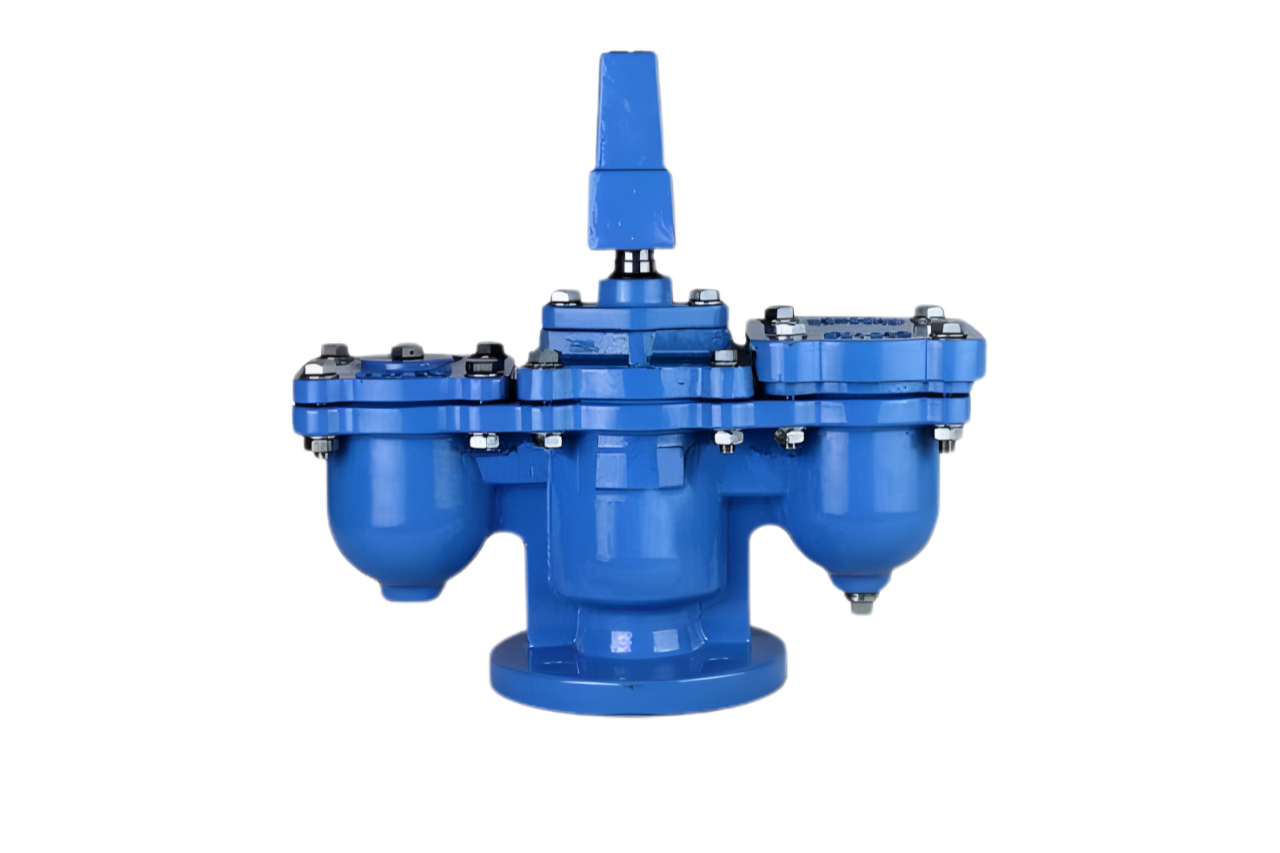

Double Air Valve

Body: Cast Iron
Trims: AISI 410
Ball: Neoprene Coated Timber
End Connection: Flanged End To BS Table D
Pressure: 16 Kg/Cm2

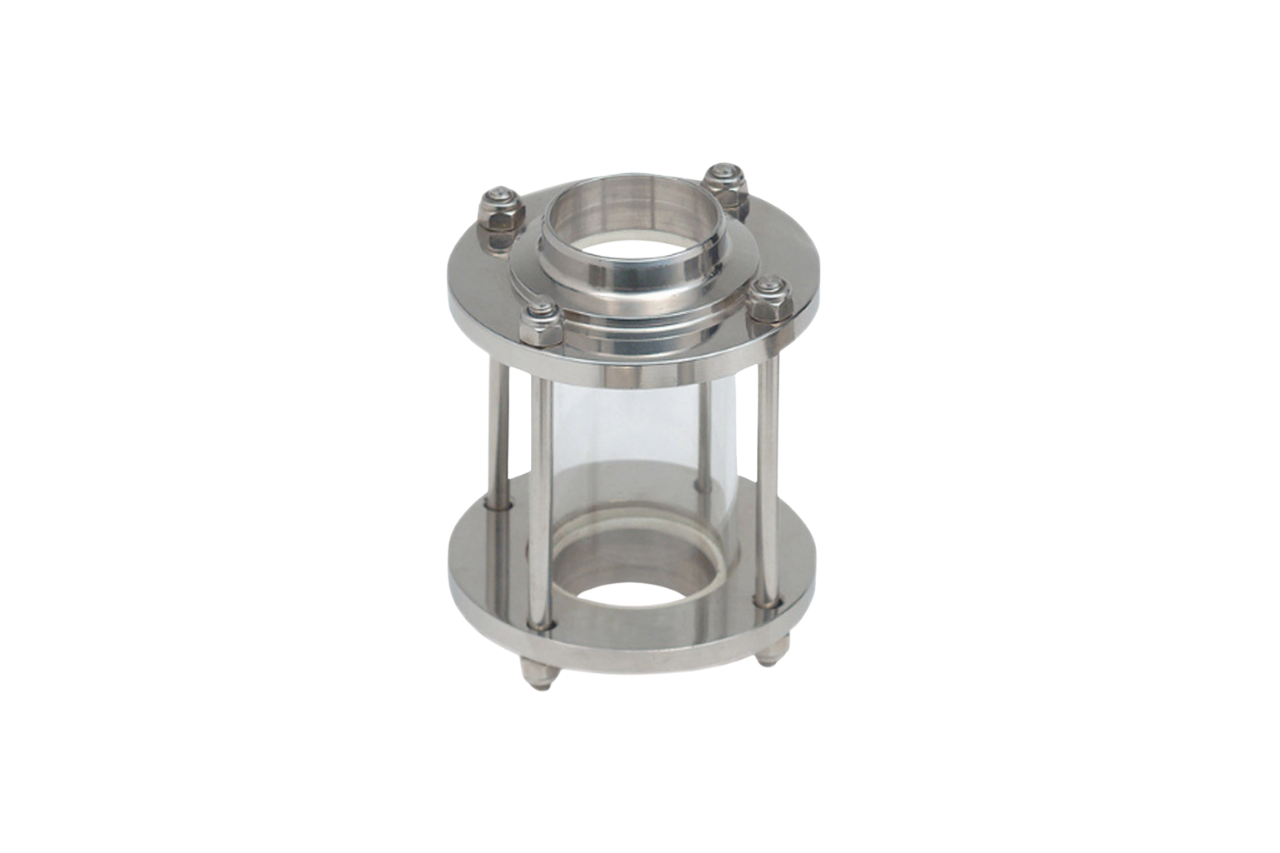

Tube Glass

Body: Carbon Steel (MS) , SS-304 , SS-316
Glass: Toughened Borosil Glass
Seat: PTFE
Tested: 100 Psig / (7 Kg / Cm2)
End Connections: Flanged End To ASME B 16.5 RF (150#)

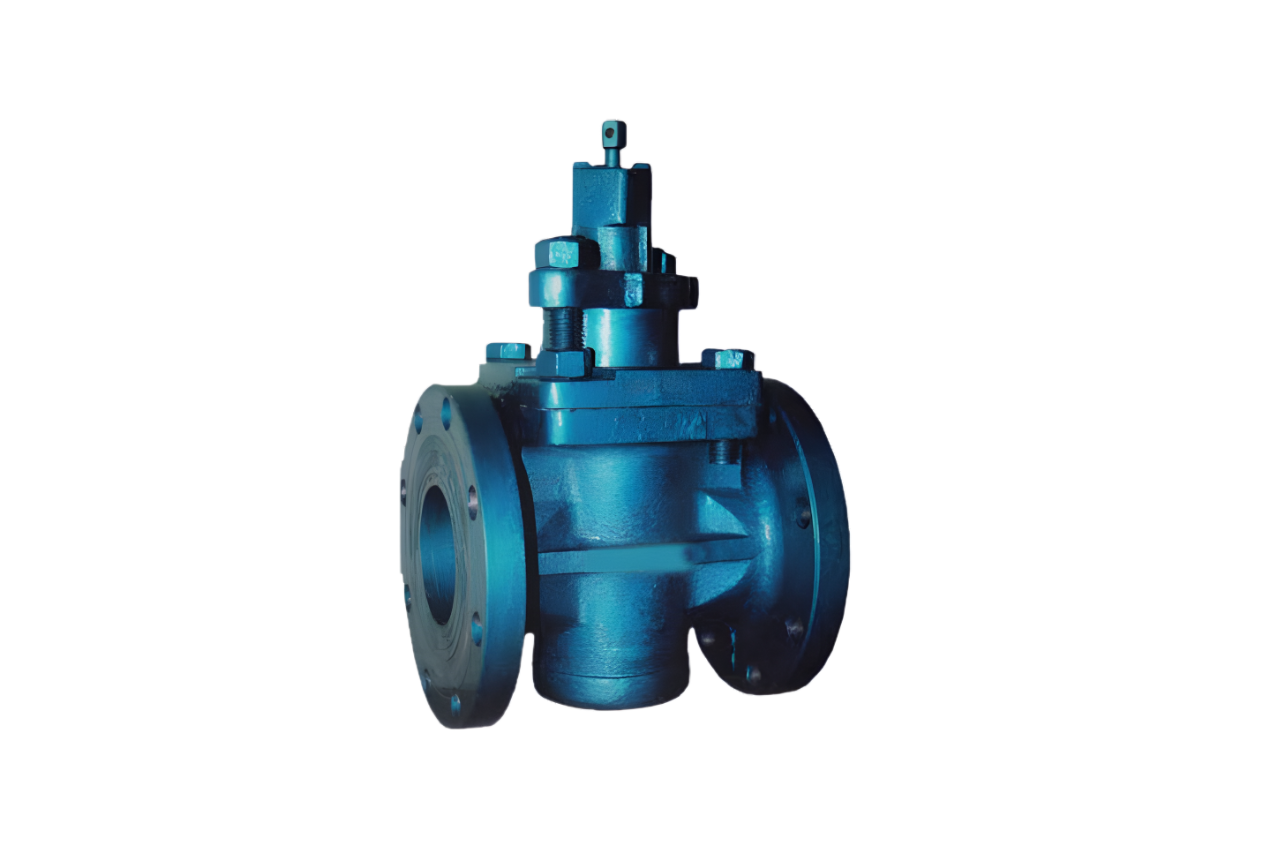

Plug Valve

Body: IS 210 Gr. FG 200/220 Cast Iron / Cast Steel (WCB)
Plug: Cast Iron / Cast Steel (WCB)
Max Pressure: 150 Psig (10.54 Kg/Cm2)
End Connection: Flanged End To ASME B 16.1 / Screwed End TO BSP F
Body Pressure: 16 Kg/Cm2
Seat Pressure: 11.5 Kg/Cm2
Application: Water
Size Range (Screwed): 15 MM To 80 MM
Size Range (Flanged): 15 MM TO 350 MM
Class: 125# , 150#

Pulp Valve

Body: Cast Iron / SS-304 / SS-316
Trims: AISI 304 / ASTM A 351 Gr CF8 / CF8M
Wedge: SS-304 / SS-316 Plate
Max Pressure: 100 Psig / (7 Kg / Cm2)
End Connections: Wafer Type To Suit ASME B 16.5 (125#)
Application: Food / Slurries
Size Range: 40 MM To 500 MM

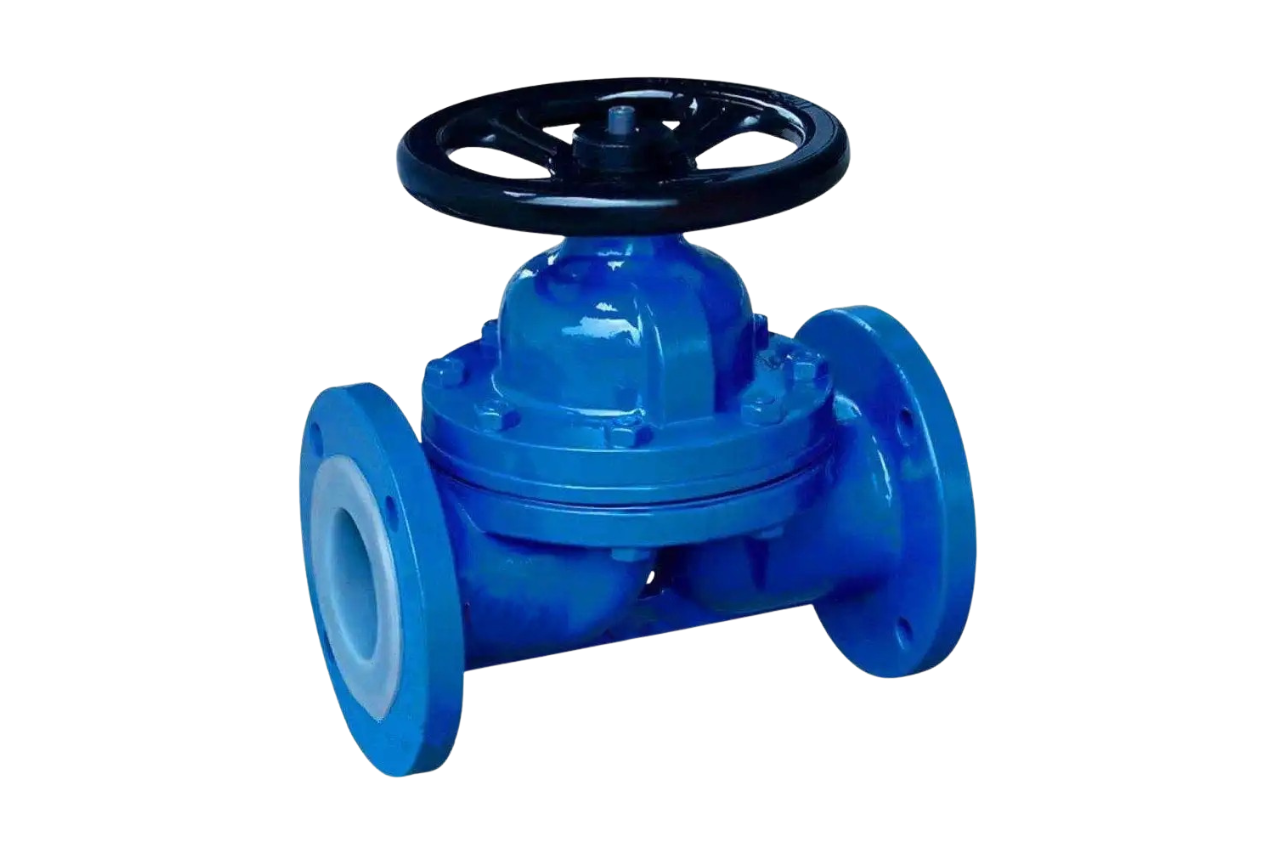

Diaphragm Valve

Body: Cast Iron / CF8 / CF8M
Lining: Ebonite Rubber
Diaphram: Neoprene Rubber / PTFE
End Connection: Flanged End / Screwed End (BSP)
Body Pressure: 15 Kg/Cm2
Seat Pressure: 10 Kg/Cm2
Application: Water
Size Range: 15 MM To 200 MM

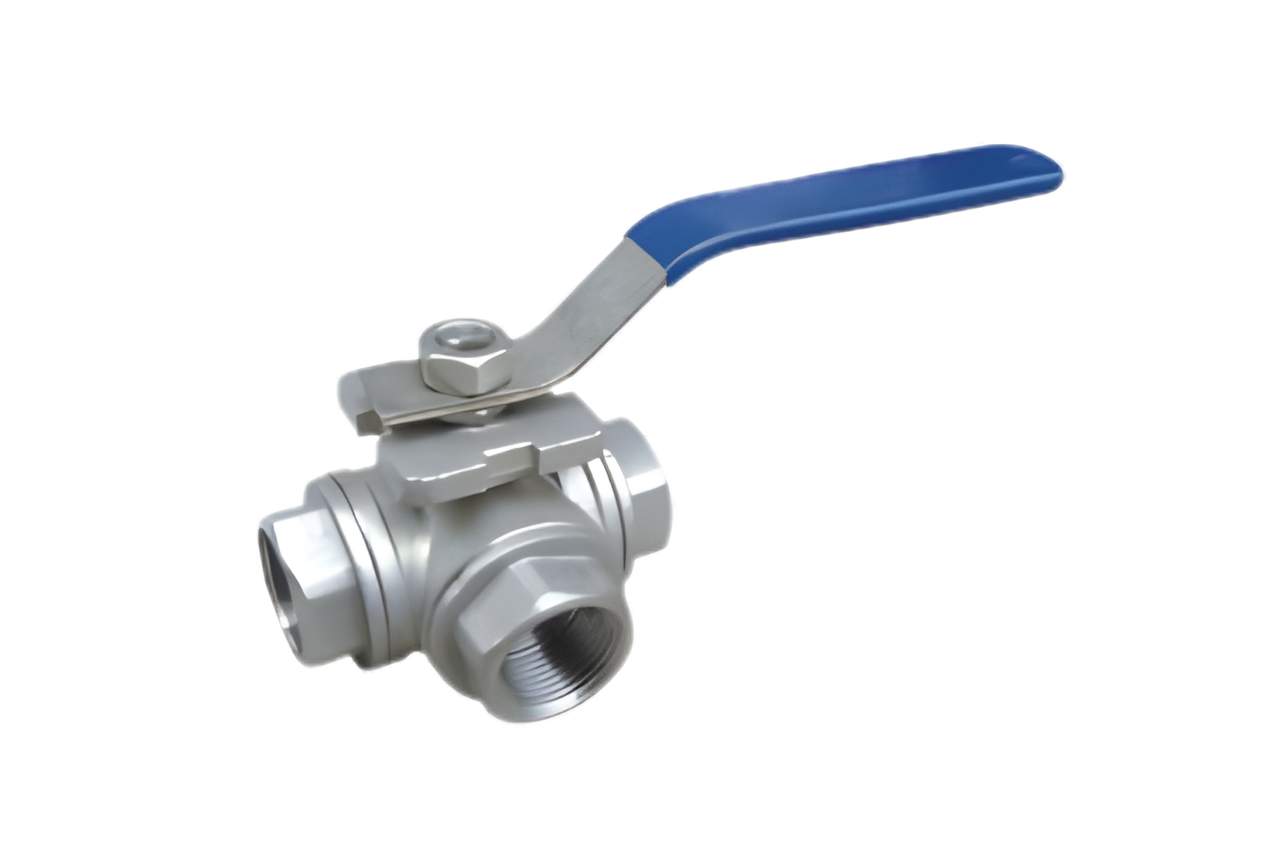

Three Way Ball Valve Screwed End

Body: ASTM A 216 Gr. WCB / CF8 / CF8M
Ball: SS 304 / SS 316
Seat: PTFE
Stem Pin & Gland: AISI 304
End Connection: Screwed End
Pressure: UP To 10 Kg/Cm2
Temperature: Upto 180º

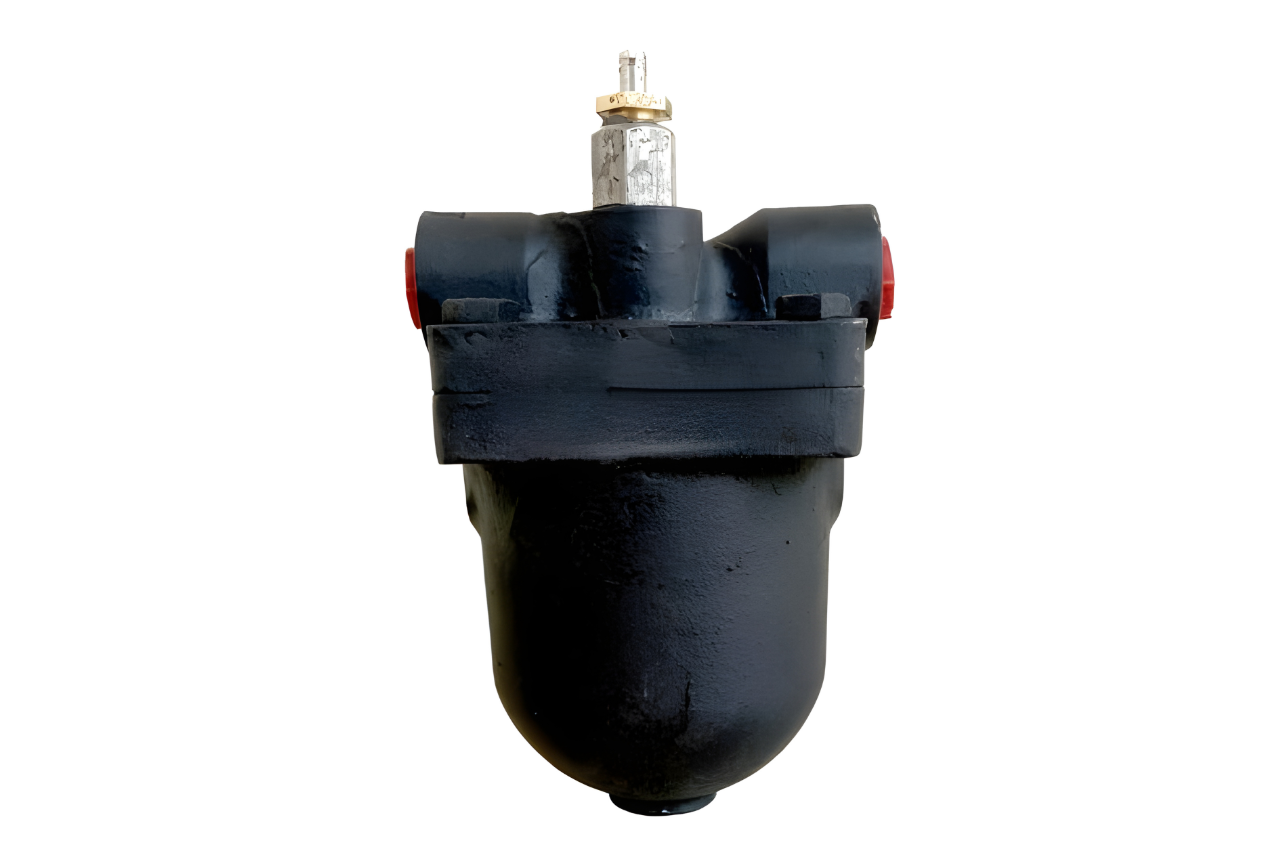

Horizontal Float Type Steam Trap Screwed End

Body: Cast Iron / WCB
Trims: 13 Cr / 18 Cr 8 Ni
End Connection: Screwed To BSP / NPT / Socket Weld / Flange End To ASME B 16.5
MFG Std.: IS 12268
INSP & Test STD: IS 12268
Max. Inlet Pressure: 10.54 Kg/Cm2
Hyd. Test Pressure: Body : 32 Kg/Cm2
